Inflatable Antenna Could Give CubeSats Greater Reach

CubeSat equipped with an inflated antenna, in a NASA radiation chamber - Image credit Alessandra Babuscia

CubeSat equipped with an inflated antenna, in a NASA radiation chamber – Image credit Alessandra Babuscia

MIT report researchers led by Alessandra Babuscia have developed a new design of antenna for small satellites known as CubeSats.

Professor Sara Seager KB1WTW - Image credit MIT

Professor Sara Seager KB1WTW – Image credit MIT

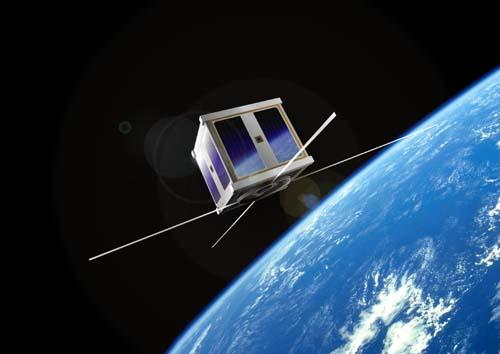

Due the their small size CubeSats have been restricted to small monopole or dipole antennas. Such low gain omni-directional antennas have restricted CubeSats to Low Earth Orbits (LEO) using lower data rates than would be possible with a large dish antenna.

The MIT team, led by Alessandra Babuscia, is part of the research group of radio amateur Professor Sara Seager KB1WTW and also includes graduate students Mary Knapp KB1WUA, Benjamin Corbin, and Mark Van de Loo from MIT, and Rebecca Jensen-Clem from the California Institute of Technology.

The new inflatable antenna developed by Alessandra Babuscia and her team may significantly increase the communication range of these small satellites, enabling them to travel much farther in the solar system: The team has built and tested an inflatable antenna that can fold into a compact space and inflate when in orbit.

It is claimed the distance that can be covered by a satellite with an inflatable antenna is seven times farther than that of existing CubeSat communications.

Alessandra Babuscia - Image Credit MIT

Alessandra Babuscia – Image Credit MIT

“With this antenna you could transmit from the moon, and even farther than that,” says Alessandra Babuscia, who led the research as a postdoc at MIT. “This antenna is one of the cheapest and most economical solutions to the problem of communications.”

‘Magic’ powder

An inflatable antenna is not a new idea. In fact, previous experiments in space have successfully tested such designs, though mostly for large satellites: To inflate these bulkier antennas, engineers install a system of pressure valves to fill them with air once in space — heavy, cumbersome equipment that would not fit within a CubeSat’s limited real estate.

Babuscia raises another concern: As small satellites are often launched as secondary payloads aboard rockets containing other scientific missions, a satellite loaded with pressure valves may backfire, with explosive consequences, jeopardizing everything on board. This is all the more reason, she says, to find a new inflation mechanism.

Mary Knapp KB1WUA - Image credit Interplanetary Small Satellite Conference

Mary Knapp KB1WUA – Image credit Interplanetary Small Satellite Conference

The team landed on a lighter, safer solution, based on sublimating powder, a chemical compound that transforms from a solid powder to a gas when exposed to low pressure.

“It’s almost like magic,” Babuscia explains. “Once you are in space, the difference in pressure triggers a chemical reaction that makes the powder sublimate from the solid state to the gas state, and that inflates the antenna.”

Testing an inflating idea

Babuscia and her colleagues built two prototype antennas, each a meter wide, out of Mylar; one resembled a cone and the other a cylinder when inflated. They determined an optimal folding configuration for each design, and packed each antenna into a 10-cubic-centimeter space within a CubeSat, along with a few grams of benzoic acid, a type of sublimating powder. The team tested each antenna’s inflation in a vacuum chamber at MIT, lowering the pressure to just above that experienced in space. In response, the powder converted to a gas, inflating both antennas to the desired shape.

Rebecca Jensen-Clem - Image credit Interplanetary Small Satellite Conference

Rebecca Jensen-Clem – Image credit Interplanetary Small Satellite Conference

The group also tested each antenna’s electromagnetic properties — an indication of how well an antenna can transmit data. In radiation simulations of both the conical and cylindrical designs, the researchers observed that the cylindrical antenna performed slightly better, transmitting data 10 times faster, and seven times farther, than existing CubeSat antennas.

An antenna made of thin Mylar, while potentially powerful, can be vulnerable to passing detritus in space. Micrometeroids, for example, can puncture a balloon, causing leaks and affecting an antenna’s performance. But Babuscia says the use of sublimating powder can circumvent the problems caused by micrometeroid impacts. She explains that a sublimating powder will only create as much gas as needed to fully inflate an antenna, leaving residual powder to sublimate later, to compensate for any later leaks or punctures.

MIT student with a CubeSat - Image credit MIT

MIT student with a CubeSat – Image credit MIT

The group tested this theory in a coarse simulation, modeling the inflatable antenna’s behavior with different frequency of impacts to assess how much of an antenna’s surface may be punctured and how much air may leak out without compromising its performance. The researchers found that with the right sublimating powder, the lifetime of a CubeSat’s inflatable antenna may be a few years, even if it is riddled with small holes.

Kar-Ming Cheung, an engineer specializing in space communications operations at NASA’s Jet Propulsion Laboratory (JPL), says the group’s design addresses today’s main limitations in CubeSat communications: size, weight and power.

“A directional antenna has been out of the question for CubeSats,” says Cheung, who was not involved in the research. “An inflatable antenna would enable orders of magnitude improvement in data return. This idea is very promising.”

Babuscia says future tests may involve creating tiny holes in a prototype and inflating it in a vacuum chamber to see how much powder would be required to keep the antenna inflated. She is now continuing to refine the antenna design at JPL.

Students build a 3U CubeSat - Image Credit NASA

Students build a 3U CubeSat – Image Credit NASA

“In the end, what’s going to make the success of CubeSat communications will be a lot of different ideas, and the ability of engineers to find the right solution for each mission,” Babuscia says. “So inflatable antennas could be for a spacecraft going by itself to an asteroid. For another problem, you’d need another solution. But all this research builds a set of options to allow these spacecraft, made directly by universities, to fly in deep space.”

Alessandra Babuscia is a Postdoctoral Research Associate at Massachusetts Institute of Technology (MIT). She has worked on several satellite projects including CASTOR, ExoplanetSat, Rexis and TerSat.

Source – MIT press release
http://www.mit.edu/newsoffice/2013/inflatable-antennae-could-give-cubesats-greater-reach-0906.html

Tiny Satellites’ Big Mission: Going Beyond Earth Orbit

Artist’s concept of the Interplanetary NanoSpacecraft Pathfinder In Relevant Environment (INSPIRE) CubeSat project – Image credit: NASA/JPL-Caltech

Artist’s concept of the Interplanetary NanoSpacecraft Pathfinder In Relevant Environment (INSPIRE) CubeSat project – Image credit: NASA/JPL-Caltech

TechNewsDaily contributor Rachel Kaufman interviewed James Cutler KF6RFX about two CubeSats that aim to travel into interplanetary space.

The two Interplanetary NanoSpacecraft Pathfinder In Relevant Environment (INSPIRE) satellites measure just 10x10x30 cm and each weigh under 4kg.

The dual INSPIRE CubeSats will demonstrate functionality, communication, navigation and payload hosting in interplanetary space. INSPIRE is a NASA JPL partnership with the University of Michigan, Ann Arbor; Cal Poly San Luis Obispo; and the University of Texas at Austin, in collaboration with Goldstone-Apple Valley Radio Telescope.

Read Rachel Kaufman’s article at
http://www.space.com/20022-tiny-cubesat-satellites-head-for-space.html
