ESEO satellite commissioning starts

Artist impression of ESEO flying over Europe - credit ESA

Artist impression of ESEO flying over Europe – credit ESA

On Monday, December 3, 2018, the 50 kg ESA Education Office satellite ESEO was launched by Space-X on the Spaceflight SSO-A SmallSat Express mission.

UPDATE April 12: The 1200 bps BPSK telemetry beacon on 145.895 MHz was activated at 1040 UT on Friday, April 12, 2019. See ESEO Real-Time Data in the AMSAT-UK Data Warehouse at http://data.amsat-uk.org/ui/eseo

Download the ESEO (FUNcube-4) Dashboard App from
https://funcube.org.uk/working-documents/funcube-telemetry-dashboard/

Following the launch from Space Launch Complex 4E (SLC-4E) at Vandenberg Air Force Base, ESEO separated from the launch vehicle and automatically activated the periodic transmission of its telemetry beacon. However, by the time out of a predefined period, having not received commands from the ground station, the spacecraft automatically entered into safe mode.

Some initial communications issues were experienced by ESEO in receiving commands from the ground stations in Forli’ (Italy) and Vigo (Spain), but they were resolved when the ESEO team of the Observatory of Tartu offered the possibility to use a ground station in Estonia. This is capable of transmitting with higher power, for a temporary contingent use. The Estonian ground station has been configured to be operated remotely by the ESEO MCC team, which involves students of the University of Bologna.

ESEO then started executing the commands transmitted from ground.

ESEO has now completed the LEOPS (Launch and Early OPerationS) phase of its mission, reaching the platform nominal mode and has begun the process of commissioning the whole satellite: firstly the platform functions, with the payloads functions following.

As part of this commissioning process, but subject to the successful completion of other preparatory tasks of the platform subsystems commissioning, it is anticipated that initial testing of the AMSAT communications payload will be carried out within the next few weeks.

AMSAT-UK will endeavour to provide some advance notice of these tests being undertaken, but the first step will be activation of the 1200 bps BPSK telemetry beacon on 145.895 MHz. The telemetry format matches previous FUNcube missions and data from this beacon will be forwarded to the FUNcube Data Warehouse using any of the FUNcube dashboards. However, to see the decoded values and graphical displays, please download the dedicated ESEO mission dashboard which is available at
https://download.funcube.org.uk/ESEO_Dashboard_v1177.msi

The payload has, additionally, a high speed, 4800 bps BPSK data format downlink and also a Mode L/V FM transponder both of which will be tested.

ESEO Real-Time Data in the AMSAT-UK Data Warehouse at http://data.amsat-uk.org/ui/eseo

Further information about ESEO can be seen at
https://www.esa.int/Education/ESEO/ESEO_student_satellite_in-orbit_commissioning_has_started

Post launch updates on the JY1SAT and ESEO missions

JY1SAT (JO-97) CubeSat

JY1SAT (JO-97) CubeSat

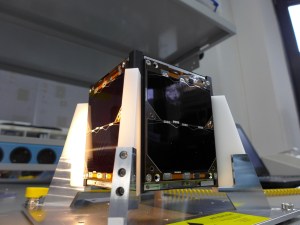

JY1SAT (JO-97) carrying the FUNcube-6 amateur radio transponder and ESEO with the FUNcube-4 transponder were launched on December 3, 2018.

JY1SAT – Although not finally confirmed, good tracking results are being obtained using the TLEs for object 2018-99AX / 43803, the 1200 bps BPSK telemetry beacon is on 145.840 MHz.

Commissioning of the spacecraft is continuing and there may be some changes to the operating modes over the next couple of weeks. Please continue to let the Data Warehouse have as much data as possible. In that regard, an updated version of the JY1SAT Dashboard (ver 1189) has just been released. This fixes a couple of buggettes relating to Doppler tracking over multiple orbits and the graph displays now no longer start at zero. This update v1189 JY1 Dashboard can be downloaded from https://download.funcube.org.uk/JY1Sat_Dashboard_v1189.msi

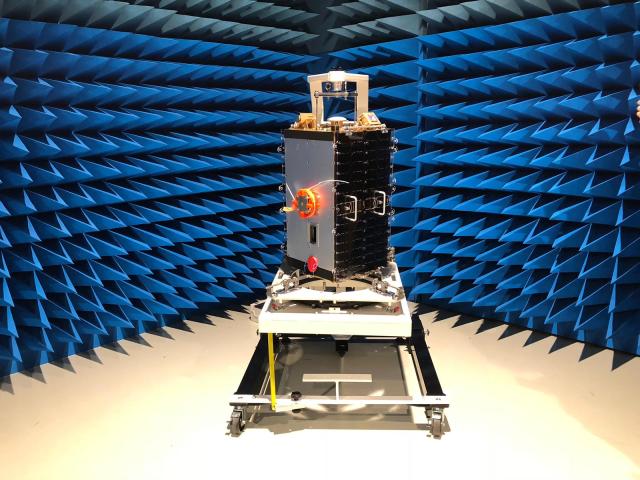

ESEO satellite in the anechoic chamber at the ESTEC test facilities, in the Netherlands

ESEO satellite in the anechoic chamber at the ESTEC test facilities, in the Netherlands

ESEO – In a similar manner to JY1SAT, the official confirmation has not been received, but the best TLEs are currently 2018-99AL / 43792. The 9600 bps downlink signal on 437.00 MHz is quite strong and reports and recordings are welcomed. Please continue to check the https://www.esa.int/Education/ESEO website for the latest updates from ESA.

We can confirm that the AMSAT payload with a downlink on 145.985 MHz has not yet been activated and that DK3WN and EA4GPZ, working with other collaborators, have developed a decoder for the 437.00 MHz downlink signals.

Decoding ESEO https://destevez.net/2018/12/decoding-eseo/

It is hoped that a UI, to show the actual telemetry values, will also be available soon.

AMSAT-UK: https://amsat-uk.org/
Twitter: https://twitter.com/AmsatUK
Facebook: https://facebook.com/AmsatUK
YouTube: https://youtube.com/AmsatUK

FUNcube Payload Telemetry Dashboards

JY1SAT CubeSat

JY1SAT CubeSat

Sunday, December 2, 2018 should see two more satellites carrying FUNcube payloads launched into orbit.

With that launch, JY1Sat and ESEO will join FUNcube-1 (AO-73) and Nayif-1 (EO-88).

The FUNcube team have been busy, not only designing and implementing the payloads, but also working on the Telemetry Dashboards and the Data Warehouse.

Each satellite has a dedicated dashboard and we have created a one page summary (FUNcube Dashboard Summary v1) of those dashboards, their current version number and a dedicated download link.

Telemetry Dashboard

We have included the recommended warehouse settings for each satellite as well as the “FCD Centre Frequency”. Note that the frequency we quote is 20 kHz offset from the published telemetry downlink to allow for the zero Hertz spike and close in phase noise that is inherent on SDRs.

Currently, to view the telemetry for a particular satellite, it is necessary to run the dashboard for that satellite. Any telemetry for one of the other FUNcube satellites can be captured and forwarded to the central data warehouse. For this reason, some users tend to run all dashboards simultaneously using the same FUNcube Dongle. Users should remember the that dashboard that was started last, is the one that will control the frequency settings applied to the FUNcube Dongle.

These dashboards are under continual development and the next planned development is to create a single dashboard that will service all FUNcube Telemetry payloads simultaneously. Keep a look out for further news on this unified dashboard in 2019.

ESEO satellite in the anechoic chamber at the ESTEC test facilities, in the Netherlands

ESEO satellite in the anechoic chamber at the ESTEC test facilities, in the Netherlands

Telemetry Data Warehouse

All telemetry received via the dashboards is forwarded to the central data warehouse, providing you have registered for an account. This has been a very successful part of the FUNcube project as it has allowed for worldwide data collection by amateurs and for all the data to be available to download and used for educational purposes.

With the pending launch of two additional satellites, some changes where required to allow this data capture to continue in an efficient manner. The data warehouse has a new user interface and all satellite data can be assessed with one URL – http://data.amsat-uk.org/

Once at the new user interface, simply select the satellite you are interested in, and all the usual telemetry will be available along with the list of current data providers to the database for that satellite.

Both the dashboards and the data warehouse are under continual development, so be sure to check back for updates.

The FUNcube team is very grateful to all radio amateurs worldwide for their continued support and we encourage you all to join in with the reception of JY1Sat and ESEO telemetry upon a successful launch this Sunday.

73s Ciaran Morgan M0XTD

FUNcube Dashboard Summary v1
https://funcubetest2.files.wordpress.com/2018/12/funcube-dashboard-summary-v1.pdf

Information on other spacecraft on the SSO-A mission with amateur radio payloads
https://amsat-uk.org/2018/11/14/ssoa-amateur-radio-satellites/

ESEO launch information and Dashboard

ESEO satellite in the anechoic chamber at the ESTEC test facilities, in the Netherlands

ESEO satellite in the anechoic chamber at the ESTEC test facilities, in the Netherlands

The launch of the ESEO spacecraft on board the SSO-A flight from Vandenberg is scheduled for 18:31:47 GMT on Monday, December 3.

The ESEO microsatellite includes a FUNcube payload which will provide similar telemetry to its predecessors but will have a more powerful transmitter and thus be even easier to hear. For amateurs, this payload will also provide a single channel L/V transponder for FM. These downlinks will be transmitted on 145.895 MHz and the FM transponder uplink will be on 1263.5 MHz with a 67 Hz PLL tone required.

A new Dashboard has been developed for this mission and is available for download ESEO Dashboard ver 1177

The AMSAT FUNcube Payload Downlink Data document gives all the information required to decode the telemetry ESEO_Downlink_Data_1_21a

The new Dashboard will operate in exactly the same manner as those developed for previous missions and general set-up information can be downloaded here: Dashboard Guidance

A new Data Warehouse has also been created. This can be used to view the telemetry from ALL of the FUNcube missions: http://data.amsat-uk.org/

We expect that the FUNcube telemetry transmitter will become operational after the launch and subsequent to the completion of initial de-tumbling of the spacecraft.

Thanks for your valuable support for this mission!

More information on ESEO is available from ESA Education’s website
https://www.esa.int/Education/ESEO

Information on other SSO-A spacecraft with amateur radio payloads
https://amsat-uk.org/2018/11/14/ssoa-amateur-radio-satellites/

ESEO ready for launch

ESEO satellite in the anechoic chamber at the ESTEC test facilities, in the Netherlands

ESEO satellite in the anechoic chamber at the ESTEC test facilities, in the Netherlands

ESA have released a video of the European Student Earth Orbiter ESEO satellite which carries an amateur radio payload.

ESEO is expected to launch as part of Spaceflight’s SSO-A SmallSat Express mission, on a SpaceX Falcon 9 from Vandenberg Air Force Base, currently scheduled for Wednesday, November 28 at 18:32 GMT.

Watch the launch live at
https://www.youtube.com/watch?v=PJkRM5QQDAA

The AMSAT payload, provided by AMSAT-UK in cooperation with the University of Surrey, UK, allows the satellite to establish a downlink connection to hundreds of ground stations in the AMSAT network, sending both housekeeping and scientific data. These data will be used to run science and technology lessons in schools and universities.

Radio amateurs will be able to communicate via the 1260/145 MHz FM transponder.

IARU Coordinated Frequencies:
• Main ESEO Telemetry Beacon 437.000 MHz 4k8 or 9k6 GMSK AX25
• FUNcube-4 Beacon 145.895 MHz 4k8 BPSK
• FM Uplink 1263.500 MHz CTCSS 67 Hz
• FM Downlink 145.895 MHz

Watch European Student Earth Orbiter ready for launch

ESEO https://amsat-uk.org/satellites/communications/eseo/

Satellites with Amateur Radio payloads on the SSO-A mission
https://amsat-uk.org/2018/11/14/ssoa-amateur-radio-satellites/

ESEO’s Educational Story Continues

Happy ESEO students and AMSAT-UK members

Happy ESEO students and AMSAT-UK members

ESA reports the European Student Earth Orbiter (ESEO) has concluded its test campaign. The ESEO student teams gathered in the Netherlands, October 18, 2018 for a last precious lesson before the satellite is launched.

ESEO satellite in the anechoic chamber at the ESTEC test facilities, in the Netherlands

ESEO satellite in the anechoic chamber at the ESTEC test facilities, in the Netherlands

ESEO carries an amateur radio 1260 to 145 MHz FM transponder and a 1k2 and 4k8 BPSK telemetry beacon developed by AMSAT-UK members.

The satellite has been at ESA’s ESTEC test facilities, in the Netherlands, where it completed the last steps of a thorough satellite test campaign which had started in August 2018 at SITAEL’s facility in Mola di Bari, Italy.

Learning by doing has already proven an amazing experience for the ten university student teams from different European universities who have designed and built the instruments and several key subsystems of the ESEO satellite.

On October 18, at a dedicated workshop, the ESEO students had the additional chance to hear first-hand what it takes to run a satellite test campaign – trouble shooting included!

“In the space sector no satellite could ever be launched without a thorough tests campaign”, said Piero Galeone, coordinating the ESA Academy programme of which ESEO is a part. “The reason is that – as perfect as your satellite design and manufacturing process can be – the devil always hides in the details. If there is anything to be fixed, you want to know it and correct it before the satellite flies on its orbit hundreds kilometres from the surface of the Earth, beyond the reach of any engineer’s hands”.

Read the full ESA story at
http://www.esa.int/Education/ESEO/Learning_from_real-life_experience_-_ESEO_s_educational_story_continues

ESEO https://amsat-uk.org/satellites/communications/eseo/
