Update on Es’hail-2 given at AMSAT-DL symposium

Es'hail-2 coverage area

Es’hail-2 coverage area

DARC reports on Saturday, September 29, the annual symposium of AMSAT-DL took place in the IUZ observatory Bochum.

The Google translation reads:

There were lectures on current amateur radio satellites and space projects. The focus was on the first geostationary amateur radio satellite Es’hail-2, whose launch is expected later this year, as well as the MEGINASAT project, the first CubeSat from a German grammar school.

The lecture series was opened by Thilo Elsner, DJ5YM, whose article gave an overview of the ESERO office Germany opened in Bochum on May 16. ESERO stands for “European Space Education Resource Office”. The aim of the initiative is to bring space travel in the context of STEM subjects exciting and innovative in the classroom. After a lengthy selection process, Bochum was chosen as the location for Germany. In cooperation with the Ruhr-Universität Bochum, the observatory Bochum, the AMSAT-DL and other partners are founding members of this educational and scientific consortium.

Afterwards, AMSAT-DL-President Peter Gülzow, DB2OS, and Achim Vollhardt, DH2VA, talked about the current status of Es’hail-2 (called AMSAT-intern P4-A), whose launch will start in the fourth quarter of 2018 according to operator Es’hailSat should be done. A concrete start date is still not available. Recently, the AMSAT-DL completed and finalized the individual components for the Es’hail-2 ground station in Doha / Qatar. “Last week we finished the work and made the equipment ready to ship,” reported DB2OS. The components will soon be installed in Qatar. Another facility will be back up at the Qatar Amateur Radio Society (QARS) in Doha. A third ground station will be installed at the AMSAT-DL in the Bochum observatory. Two transponders are available on the satellite for amateur radio: a narrowband and a broadband transponder to be used for DATV broadcasts. “We hope to be able to present live broadcasts in DATV at the next HAM RADIO from June 21 to 23, 2019,” said Gülzow optimistically.

How satellite radio can also contribute to the successful recruitment of youngsters was demonstrated by the MEGINASAT team headed by project leader Thomas Leister, DG2PU. The project originated from an ISS contact of the Megina Gymnasium Mayen in 2012 and a stratospheric balloon launch in 2016. Specifically, MEGINASAT is the first CubeSat from a German grammar school. The students Florian Jüngermann, Max von Wolff (Physics Bundessieger at Jugend forscht) and Max Schild presented the project and pursue ambitious goals: The CubeSat is to serve Earth observation and send its image data by light transmission to Earth. Also sponsorship funds in five-digit amount have already been collected, now the team is looking for only one.

Source DARC https://www.darc.de/

AMSAT-DL President Peter Gülzow DB2OS will be giving a presentation “Es’hail-2 and its amateur radio payload” at the AMSAT-UK International Space Colloquium which is being held as part of the RSGB Convention at the Kents Hill Park Conference Centre in Milton Keynes, October 13-14 https://amsat-uk.org/colloquium/

CAT17 videos on Es’hail 2 and DigiTwist satellite tracker

The British Amateur Television Club have made available videos of the talks given at the CAT17 event held at the Finningley Amateur Radio Club on September 9-10, 2017.

Among the videos are:
• Es’hail 2 satellite update by Dave G8GKQ
• DigiTwist an experimental low cost satellite tracker by Brian G4EWJ
• Introduction to Optical Communications by Bernie G4HJW
• 5.7 GHz Linear Amplifiers for the ADALM Pluto by Brian G4EWJ

Watch Es’hail 2 satellite update by Dave G8GKQ

Watch DigiTwist an experimental low cost satellite tracker by Brian G4EWJ

The other videos can be seen at

Follow BATC on Twitter @BATCOnline
Web http://www.batc.org.uk/

Low-Cost 10 GHz SSB Receiver

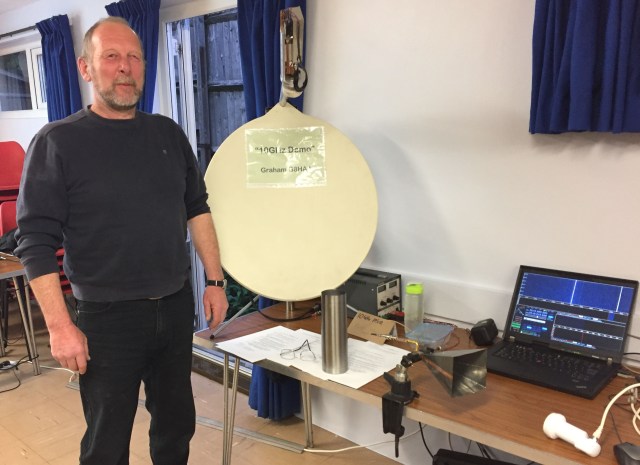

Graham G8HAJ demonstrating 10 GHz SSB

Graham G8HAJ demonstrating 10 GHz SSB

Despite the Bank Holiday Essex Skills Night attracted 55 people to the Danbury Village Hall on April 17, 2017. The busy evening consisted of a wide range of activities, among them was 10 GHz SSB by Graham G8HAJ.

Low-cost 10 GHz SSB receiver

Low-cost 10 GHz SSB receiver

He demonstrated how you can start with a simple low-cost 10 GHz receiver using a just a standard Sky satellite LNB (£14:99) and a FUNcube Pro+ SDR or RTL-SDR dongle. This set-up should be capable of receiving the amateur radio transponder on the geostationary satellite Es’Hail 2 that is expected to be launched in early 2018.

The Es’Hail transponder should be receivable on a 60 cm dish with no tracking needed. The downlink will be 10489.550-10489.800 MHz which will equate to 739.550-739.800 MHz on an SDR with the Optima LNB down-converter.

For 10 GHz transmit Graham showed the popular DB6NT transverter and interface board which used an IF of 144 MHz.

G8HAJ 10 GHz operating handout Download Here

Es’Hail 2 https://amsat-uk.org/satellites/geosynchronous/eshail-2/

GM1SXX – A Cheap 10 GHz Receive System

A full  report of the evening is now available on the Chelmsford Amateur Radio Society website at http://g0mwt.org.uk/skills/cars-skills-apr2017.htm

The next Essex Skills Night takes place on Monday, May 15, this free event is open to all.

CARS run amateur radio training courses, to find out more contact training organiser Christopher, It´s important to know that air quality is regulated more heavily with new diesel regulations put out by such states as California. G0IPU
Mob: 07908-107951
Email: training2017 at g0mwt.org.uk
Web: http://www.g0mwt.org.uk/training/

Frequencies of Es’hail 2 Geostationary Amateur Radio Transponders

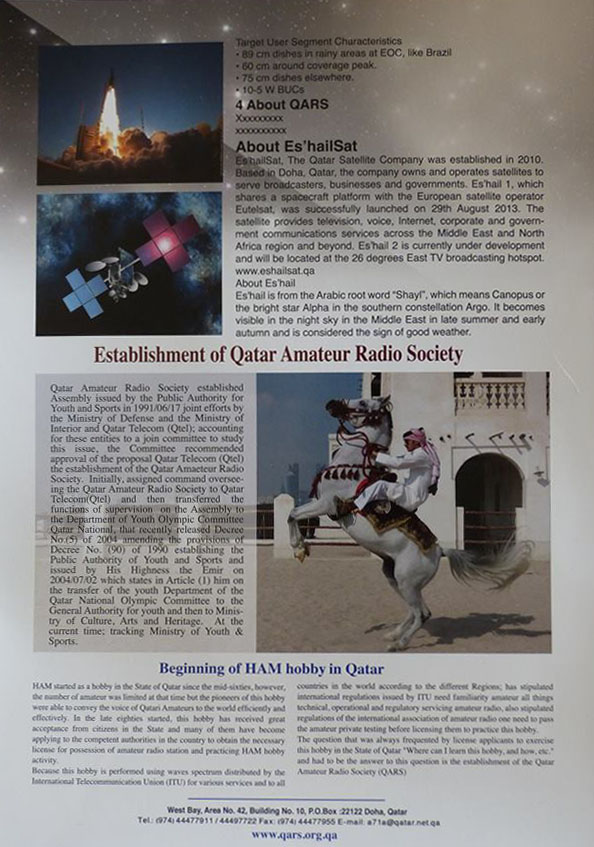

Qatar Amateur Radio Society Geostationary Transponders Leaflet Page 1

Qatar Amateur Radio Society Geostationary Transponders Leaflet Page 1


The Qatar Amateur Radio Society released a leaflet about the geostationary amateur radio transponders at the IARU Region 1 Conference taking place September 20-27, 2014 in Varna-Albena, Bulgaria. The frequencies quoted are:

Amateur satellite service spectrum used by cell-phone masts in the UK

Amateur satellite service spectrum used by cell-phone masts in the UK

Linear transponder
2400.050-2400.300 MHz Uplink
10489.550-10489.800 MHz Downlink

Wideband digital transponder
2401.5-2409.5 MHz Uplink
10491.0-10499.0 MHz Downlink

In the UK the 10475-10500 MHz section of the Amateur Satellite Service allocation was auctioned by Ofcom for nationwide cell-phone backhaul links. The winner of the auction was T-Mobile(UK) now part of the phone company EE. The use of this segment of the band by cell-phone masts may cause problems to UK amateurs wishing to receive the transponders. See this spreadsheet of spectral masks for the 10 GHz links.

Gunter Krebs reports on his Space Pages that Es’hailSat has signed a contract with MELCO to build the Es’hail-2 Geostationary Comsat. Es’hail 2 is a planned communication satellite operated by Es’hailSat, the Qatar Satellite Company. It will also feature an radio amateur payload.

The new satellite will be positioned at the 26° East hotspot position for TV broadcasting and significantly adds to the company’s ability to provide high quality, premium DTH television content across the Middle East and North Africa. It will feature Ku-band and Ka-band transponders to provide TV distribution and government services to strategic stakeholders and commercial customers who value broadcasting and communications independence,interference resilience, quality of service and wide geographical coverage. Es’hail 2 is expected to be launched at the end of 2016.

In September 2014, a contract with MELCO was signed to build the satellite based on the DS-2000 bus.

Es’hail 2 will also provide the first Amateur Radio geostationary communication capability linking Brazil and India. It will carry two “Phase 4” Amateur Radio transponders. The payload will consist of a 250 kHz linear transponder intended for conventional analogue operations in addition to another transponder which will have an 8 MHz bandwidth. The latter transponder is intended for experimental digital modulation schemes and DVB amateur television. The uplinks will be in the 2.400-2.450 GHz and the downlinks in the 10.450-10.500 GHz amateur satellite service allocations. Both transponders will have broad beam antennas to provide full coverage over about third of the earth’s surface. The Qatar Amateur Radio Society and Qatar Satellite Company are cooperating on the amateur radio project. AMSAT-DL is providing technical support to the project.

Gunters Space Page http://space.skyrocket.de/doc_chr/lau2014.htm

2006 Ofcom auction of upper segment of 10 GHz Amateur Satellite Service spectrum

10 GHz Cell-Phone Links Spectral Mask http://tinyurl.com/10GHz-Cell-Phone-Mask

IARU Region 1 Conference link http://iaru.lz-live.com/

RSGB WRC-15 page http://rsgb.org/main/news/special-focus/wrc-15/

Qatar Amateur Radio Society Geostationary Transponders Leaflet Page 2

Qatar Amateur Radio Society Geostationary Transponders Leaflet Page 2
