BBC: Ecuador Pegasus CubeSat fears over space debris crash

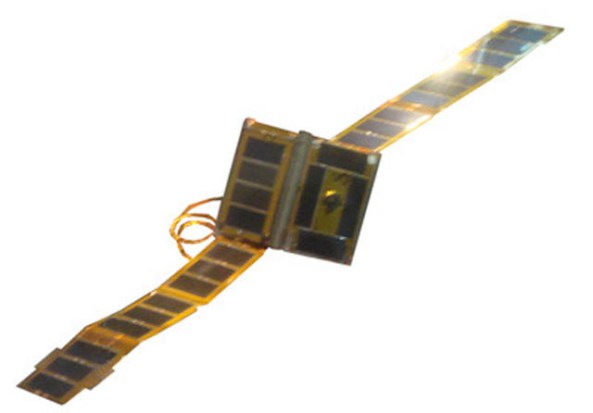

CubeSat NEE-01 Pegasus

CubeSat NEE-01 Pegasus

BBC News is reporting that at 0538 UT on Thursday, May 23 Ecuador’s new NEE-01 Pegasus 910 MHz CubeSat collided with debris from a S14 Soviet rocket launched in 1985.

The satellite was some 1,500 km east of Madagascar at the time. Pegasus, launched less than a month ago, is the first 1U CubeSat to carry a HD TV transmitter and deployable solar panels. The basic satellite is just 10 by 10 by 10 cm but, when deployed, the solar panels have a span of 70 cm.

Ronnie Nader with Elisse Nader and CubeSat

Ronnie Nader with Elisse Nader and CubeSat

Ecuador’s first Astronaut Ronnie Nader is quoted as saying “Pegasus could be damaged or spinning out of control, but because it’s still in orbit, we have hope“.

He had said earlier that it could take up to 48 hours to ascertain possible damage using radar.

Read the original BBC News story Ecuador Pegasus satellite fears over space debris crash at http://www.bbc.co.uk/news/world-latin-america-22635671

May 23, 0700 UT: Ronnie Nader posted “Survived the event, but we are almost sure of side impact with particles, tomorrow [May 23 ECT?] we will see the state of Pegasus, but we are still in the sky, still have Pegasus”.

May 23, 1600 UT: Ronnie Nader tweeted Now we are sure that there [was] particle impact.

BBC News Monday, May 27: Ecuador tries to fix satellite after space debris crash at http://www.bbc.co.uk/news/world-latin-america-22678919

Educational outreach is an important part of the project. The Ecuadorian Space Agency EXA is partnering with schools in Ecuador as part of the ASTERIA Program, in which students will use the satellite in their curricular and extra curricular activities.

The BBC report that the Ecuadorian Government contributed $700,000 towards the launch costs of the 1U CubeSat. It was launched on April 26, 2013 into a 660 km orbit on a CZ-2D rocket from the Jiuquan Space Center along with CubeBug-1 and TURKSAT-3USAT. It was reported by EXA that the Argentine CubeBug-1 had a particle impact, however, Colin Hurst VK5HI has tweeted @AMSATUK @CubeBug1 CubeBug-1 still beaconing at 1257utc 24th May 2013 @VK5HI

902 – 928 MHz is an amateur radio allocation in some countries.

EXA has indicated that the successor to Pegasus, NEE-02 Krysaor, is expected to launch on a Dnepr rocket from Dombarovsky near Yasny. This is expected to take place in November 2013 https://amsat-uk.org/2013/02/14/two-tv-cubesats-from-ecuador/

EXA report on the incident in Spanish http://www.exa.ec/bp52/
Google English version of the report http://tinyurl.com/q8wdql2

NEE-01 Pegasus 910 MHz TV Camera in Action
https://amsat-uk.org/2013/05/20/nee-01-pegasus-910-mhz-tv-camera-in-action/

NEE-01 Pegaus HD TV CubeSat
https://amsat-uk.org/2013/04/25/nee-01-pegasus-hd-tv-cubesat/

January 2014 Ecuadorian Civil Space Company (EXA)—Imagery Involvement + An Important Recovery (Satellites) http://www.satnews.com/story.php?number=1323163133

NEE-01 Pegasus 910 MHz TV Camera in Action

NEE-01 Pegasus (Pegaso) the first of two HD TV CubeSats built in Ecuador launched on a CZ-2D rocket from the Jiuquan Space Center on Friday, April 26 at 0413 UT.

The 1U CubeSat (10x10x10 cm) was built in Ecuador and carries a 0.9 watt output 720p HD TV transmitter on 910 MHz (an amateur radio band in some countries).

Watch NEE-01 Pegaso recording May 16, 2013

EarthCam has teamed up with the Ecuadorian Civilian Space Agency to deliver what EarthCam describe as an amazing viewing experience from an orbiting satellite. You can view the NEE-01 Pegasus SpaceCam online at http://www.earthcam.com/world/ecuador/ecsa/

NEE-01 Pegasus (Pegaso) https://amsat-uk.org/2013/04/25/nee-01-pegasus-hd-tv-cubesat/

January 2014 Ecuadorian Civil Space Company (EXA)—Imagery Involvement + An Important Recovery (Satellites) http://www.satnews.com/story.php?number=1323163133

Ham Radio CubeSats Successfully Launched

CZ-2D Launch

CZ-2D Launch

At 0413 UT on Friday, April 26, two amateur radio CubeSats TURKSAT-3USAT and CubeBug-1 along with the NEE-01 Pegasus HD TV CubeSat were launched from the Jiuquan Space Center on a CZ-2D rocket.

TURKSAT-3USAT is a 3U CubeSat (10x10x30cm) and carries a 145 to 435 MHz linear transponder built by the Turkish TAMSAT / AMSAT-TR group for SSB and CW communications.

• CW Beacon or 9600 bps data: 437.225 MHz
Uplink: 145.940 to 145.990 MHz
Downlink: 435.200 to 435.250 MHz

Further details at https://amsat-uk.org/satellites/turksat-3usat/

The Argentine CubeBug-1 is a 2U CubeSat (10x10x20cm) and has an AX.25 packet radio digipeater.

It operates  on 437.445 MHz using 1200 bps AX.25 AFSK FM packet radio, callsign LU1VZ-11. Depending on the mode of the satellite the beacons will be transmitted every 10 to 30 seconds.

Further details at https://amsat-uk.org/satellites/cubebug-1/

Also on the same launch was NEE-01 Pegasus a 1U CubeSat (10x10x10cm) built in Ecuador that operates on 910 MHz (an amateur band in some countries). It will operate either a 0.9 watt output 720p HD TV transmitter or a beacon which will send a Morse Code ID, a SSTV image and Ecuador’s national anthem. EarthCam – SpaceCam http://www.earthcam.com/world/ecuador/ecsa/

Further details at
https://amsat-uk.org/2013/04/25/nee-01-pegaus-hd-tv-cubesat/

TURSAT-3USAT and CubeBug-1 Received

At 0915 UT Wouter Weggelaar PA3WEG reported he had heard the TURKSAT-3USAT CW beacon and a transmission that looked like 9k6 from CubeBug-1.

The TURKSAT-3USAT recordings are at:
http://pa3weg.nl/pa3weg/recordings/TurkSat-26-04-2013_0904UTC_1_PA3WEG.mp3
and
http://pa3weg.nl/pa3weg/recordings/TurkSat-26-04-2013_0904UTC_2_PA3WEG.mp3

CubeBug-1 recording, listening to the FM AFSK in SSB
http://www.pa3weg.nl/pa3weg/recordings/CubeBug-1-26-04-2013_1040UTC_PA3WEG.mp3

Wouter PA3WEG later reported CubeBug-1 has been heard again on the 1220 UT pass. Its modulation
is AFSK 1200bps but seems to be lacking deviation. It was transmitting every 30 seconds.  A recording can be found at
http://pa3weg.nl/pa3weg/recordings/CubeBug-1t-26-04-2013_1220UTC_PA3WEG.mp3

The TURKSAT-3USAT CW Message as decoded at 0904 UT by Wouter Jan PE4WJ:
TURKSAT 3U SAT HAAAAAA YM2RTU 0 0 (the last zeroes are ??)

Jan van Gils PE0SAT reported receiving CubeBug-1 at 1220 UT http://www.pe0sat.vgnet.nl/2013/cubebug-heard/

A Tweet from Ecuador about NEE-01 Pegasus said (Google English translation) “An amateur radio operator in Germany we pass the audio signal PEGASUS and the first thing we heard was the NATIONAL ANTHEM! PEGASUS is alive!”

TLEs / ‘Keps’ for the new CubeSats:

TURKSAT
1 12345U 12345A   13116.18500615  .00000000  00000-0  10000-4 0     6
2 12345  98.0372 191.7767 0017397 251.4298 279.4470 14.76467545    04
NEE-01 PEGASO
1 12346U 12346A   13116.18500615  .00000000  00000-0  10000-4 0     8
2 12346  98.0563 191.7735 0017556 248.2772 282.5989 14.76251447    02
CUBEBUG
1 12347U 12347A   13116.18500615  .00000000  00000-0  10000-4 0     0
2 12347  98.0563 191.7735 0017556 248.2772 282.5989 14.76251447    03

Free satellite tracking software:
• SimpleSat Look Down http://www.tomdoyle.org/SimpleSatLookDown/
• Gpredict http://gpredict.oz9aec.net/
• Orbitron http://www.uk.amsat.org/?p=9051

TLEs / ‘Keps’ for new satellites launched in past 30 days
http://celestrak.com/NORAD/elements/tle-new.txt

Article – Getting started on satellites
https://amsat-uk.org/beginners/radcom-getting-started-on-satellites/

NEE-01 Pegasus HD TV CubeSat

CubeSat NEE-01 Pegasus

CubeSat NEE-01 Pegasus – Image credit EXA

Pegasus NEE-01 the first of two HD TV CubeSats built in Ecuador is planned to launch on a CZ-2D rocket from the Jiuquan Space Center on Friday, April 26 at 0413 UT.

Ronnie Nader with Elisse Nader and CubeSat

Ronnie Nader with Elisse Nader and CubeSat

An EXA announcement said NEE-01 PEGASUS and NEE-02 KRYSAOR are the first CubeSats designed and developed entirely in Latin America, without help or support from abroad.

“This is a major milestone in our history and the history of the region, now our space technology is qualified for Russian and Chinese launch vehicles and to survive the space environment. The satellites passed the tests without any problems and now we await the launch of the first, the NEE-01 PEGASUS in the first half of May and the second in the latter half of July” said Ronnie Nader, Director of Space Operations EXA and leader of the team that designed and built the satellite.

Both satellites were designed and built by EXA engineers who donated their work voluntarily, the Ecuadorian Government financed the launch and testing.

EXA and the Ecuadorian government are engaging in ​​joint projects to ensure full utilization of the satellites, for both scientific and educational purposes.

NEE-02 Krysaor - Image credit EXA

NEE-02 Krysaor – Image credit EXA

The launch of the NEE-01 had been scheduled for November last year aboard a Russian Dnepr rocket, but the launch was postponed to later this year, and it was decided to launch NEE-01 on a Chinese CZ-2D rocket. The satellites had to meet the launch requirements of both vehicles, which was a skill level higher than previously achieved by the Ecuadorian engineers.

Source of text above: http://www.exa.ec/bp46/ translated by Google.

Each CubeSat is just 10x10x10 cm (1U) and they have fold-out solar panels which give a total span of 70 cm. They will each carry a 0.9 watt output 720p HD TV transmitter and a beacon which will send a Morse Code ID, a SSTV image and Ecuador’s national anthem. It is understood that NEE-001 will operate on 910 MHz in the 33cm band, an amateur radio allocation in a number of countries, while NEE-02 will be in the 980 MHz band.

Educational outreach is an important part of the project. EXA is partnering with three schools in Ecuador as part of the ASTERIA Program, in which students will use the satellite in their curricular and extra curricular activities.

The satellite signal will be received and decoded by the EXA HERMES-A ground station in Guayaquil and then uploaded live to the Internet using Facebook and Twitter; the first signal will contain text book questions and the second will contain an image related to the question. If the students are able to answer the question correctly they will be granted access to the video camera on board the spacecraft and will be able to see Earth from space as the astronauts see it in their space missions. More advanced students will have access to the pure radio signal so they can try decoding it by themselves.

There is also a HERMES-B ground station located in Kirch-Brombach, Germany.

Journey to Space!
EarthCam has teamed up with the Ecuadorian Civilian Space Agency to deliver what EarthCam describe as an amazing viewing experience from an orbiting satellite. Mounted on the NEE-01 Pegasus, a live camera invites viewers to take a trip into space and explore the galaxy.
EarthCam – SpaceCam http://www.earthcam.com/world/ecuador/ecsa/

EXA indicates that NEE-02 KRYSAOR is expected to launch on a Dnepr rocket from Dombarovsky near Yasny later this year.

Twitter https://twitter.com/NEE01_PEGASO hash tags #SatélitePegaso #Pegaso

Facebook https://www.facebook.com/NEE01PEGASO

Wiki http://en.wikipedia.org/wiki/NEE-01_Pegasus

Two TV CubeSats from Ecuador https://amsat-uk.org/2013/02/14/two-tv-cubesats-from-ecuador/

NEE-01 Pegasus (Pegaso) website in Google English http://tinyurl.com/NEE-01-Pegasus

Ecuadorian CubeSat will monitor near-earth objects http://www.uk.amsat.org/?p=6932

IAC2011 Paper http://exa.academia.edu/RonnieNader/Papers/795135/NEE-01_PEGASUS_The_first_Ecuadorian_Satellite

January 2014 Ecuadorian Civil Space Company (EXA)—Imagery Involvement + An Important Recovery (Satellites) http://www.satnews.com/story.php?number=1323163133

NEE-01 Pegasus – a window to see the Earth from the classroom

Ecuador’s first satellite NEE-01 Pegasus, built by the Ecuadorian Space Agency EXA, is currently planned to launch in the 1st quarter of 2013 on a DNEPR rocket from Yasny.

Continue reading

Ecuador, heading into space

CubeSat NEE-01 Pegasus

A Chinese rocket due to launch in the 2nd quarter of 2013 will carry CubeSat NEE-01 Pegasus from Ecuador.

Ronnie Nader with Elisse Nader and CubeSat

The NEE-01 Pegasus engineering team was led by Cmdr. Ronnie Nader, Ecuador’s first astronaut. The tiny 1U CubeSat (10cm cube) has a large fold-out solar array, a world first, and carries a 902 MHz band 720p HD TV transmitter, another world first for a CubeSat. Also operating in the same band will be a beacon that will send a Morse Code ID, a SSTV image and Ecuador’s national anthem.

The raw aluminum structure of the CubeSat was donated by Professor Bob Twiggs KE6QMD. After launch the 10 by 10 by 10 cm NEE-01 Pegasus will deploy its 75 cm fold-out solar panels, the largest to be flown on a CubeSat.

As part of the educational outreach objectives of the satellite video of the Earth taken by the HD camera will be made available to school students in Ecuador.

The satellite will send two signals that will be received and decoded by the EXA’s HERMES-A ground station in Guayaquil and then uploaded live to the Internet using Facebook and Twitter; the first signal will contain text book questions and the second will contain an image related to the question. If the students are able to answer the question correctly they will be granted access to the video camera on board the spacecraft and will be able to see earth from space as the astronauts see it in their space missions. More advanced students will have access to the pure radio signal so they can try decoding it by themselves.

The satellite featured in the July 15 edition of the El Murcurio newspaper.

Read the El Murcurio newspaper article in Google English http://tinyurl.com/Ecuador-in-Space

NEE-01 Pegasus on Facebook https://www.facebook.com/NEE01PEGASO/

IAC2011 Paper http://exa.academia.edu/RonnieNader/Papers/795135/NEE-01_PEGASUS_The_first_Ecuadorian_Satellite

NEE-01 Pegasus will monitor near-earth objects http://www.uk.amsat.org/6932
