When NASA’s Juno spacecraft flew past Earth on Oct. 9, 2013, it received a boost in speed of more than 7.3 kilometers per second, which set it on course for a July 4, 2016, rendezvous with Jupiter, the largest planet in our solar system.

During the flyby, Juno’s Waves instrument, which is tasked with measuring radio and plasma waves in Jupiter’s magnetosphere, recorded amateur radio signals. This was part of a public outreach effort involving ham radio operators from around the world. They were invited to say “HI” to Juno by coordinating radio transmissions that carried the same Morse-coded message. Operators from every continent, including Antarctica, participated. The results can be seen in this video clip at http://photojournal.jpl.nasa.gov/archive/PIA17744.mov

Watch Watch Hams Detected From Space by NASA’s Juno Spacecraft

Watch this video depicting the efforts of a few of the many amateur radio operators who participated

One of Juno’s sensors, a special kind of camera optimized to track faint stars, also had a unique view of the Earth-moon system. The result was an intriguing, low-resolution glimpse of what our world would look like to a visitor from afar.

“If Captain Kirk of the USS Enterprise said, ‘Take us home, Scotty,’ this is what the crew would see,” said Scott Bolton, Juno principal investigator at the Southwest Research Institute, San Antonio. “In the movie, you ride aboard Juno as it approaches Earth and then soars off into the blackness of space. No previous view of our world has ever captured the heavenly waltz of Earth and moon.”

Watch the Juno Earth flyby movie with a music accompaniment by Vangelis

The cameras that took the images for the movie are located near the pointed tip of one of the spacecraft’s three solar-array arms. They are part of Juno’s Magnetic Field Investigation (MAG) and are normally used to determine the orientation of the magnetic sensors. These cameras look away from the sunlit side of the solar array, so as the spacecraft approached, the system’s four cameras pointed toward Earth. Earth and the moon came into view when Juno was about 600,000 miles (966,000 kilometers) away — about three times the Earth-Moon separation.

During the flyby, timing was everything. Juno was traveling about twice as fast as a typical satellite, and the spacecraft itself was spinning at 2 rpm. To assemble a movie that wouldn’t make viewers dizzy, the star tracker had to capture a frame each time the camera was facing Earth at exactly the right instant. The frames were sent to Earth, where they were processed into video format.

“Everything we humans are and everything we do is represented in that view,” said the star tracker’s designer, John Jørgensen of the Danish Technical University, near Copenhagen.

“With the Earth flyby completed, Juno is now on course for arrival at Jupiter on July 4, 2016,” said Rick Nybakken, Juno project manager at NASA’s Jet Propulsion Laboratory in Pasadena, Calif.

The Juno spacecraft was launched from Kennedy Space Center in Florida on August 5, 2011. Juno’s launch vehicle was capable of giving the spacecraft only enough energy to reach the asteroid belt, at which point the sun’s gravity pulled it back toward the inner solar system. Mission planners designed the swing by Earth as a gravity assist to increase the spacecraft’s speed relative to the sun, so that it could reach Jupiter. (The spacecraft’s speed relative to Earth before and after the flyby is unchanged.)

After Juno arrives and enters into orbit around Jupiter in 2016, the spacecraft will circle the planet 33 times, from pole to pole, and use its collection of science instruments to probe beneath the gas giant’s obscuring cloud cover. Scientists will learn about Jupiter’s origins, internal structure, atmosphere and magnetosphere.

Source: http://www.jpl.nasa.gov/news/news.php?release=2013-360

Radio Hams Say Hi To Juno
https://amsat-uk.org/2013/10/09/radio-hams-say-hi-to-juno/

Thanks to Andy Thomas G0SFJ for spotting this item.

Say Hi to Juno – Presentation

This computer-generated image depicts NASA's Juno spacecraft firing its Leros-1b main engine - credit NASA

This computer-generated image depicts NASA’s Juno spacecraft firing its Leros-1b main engine – credit NASA

In a post on the AMSAT Bulletin Board (AMSAT-BB) Andy Thomas G0SFJ informs us of a presentation on Tuesday, December 10 regarding the amateur radio “Say Hi to Juno” project.

American Geophysical Union (AGU) Fall Meeting
Science from Juno’s Earth Flyby
Tuesday, 10 December 10:30 a.m. PST (18:30 UT)

In October, the Jupiter-bound Juno spacecraft did a flyby of Earth before its long journey. The Juno team presents a low-resolution Earth flyby video as well as data acquired by the spacecraft as it zipped past the home planet. Team members will also discuss results from the mission’s outreach campaign inviting amateur radio operators to “Say Hi to Juno” as the spacecraft passed, and the scientific goals for the mission once it reaches Jupiter.

Participants:
Scott Bolton, Juno principal investigator, Southwest Research Institute, San Antonio, Texas, USA;
John Joergensen, Juno star-camera team lead, Danish Technical University, Copenhagen, Denmark;
Bill Kurth, co-investigator for the Juno Waves Investigation, University of Iowa, Iowa City, Iowa, USA.

Sessions: SM21E, SM33B

Webstreaming
http://fallmeeting.agu.org/2013/media-center/press-conference-webstreaming-instructions/

Source: http://fallmeeting.agu.org/2013/media-center/press-conferences/#juno

Radio Hams Say Hi To Juno https://amsat-uk.org/2013/10/09/radio-hams-say-hi-to-juno/

AMSAT Bulletin Board (AMSAT-BB) http://www.amsat.org/amsat-new/tools/maillist/

Radio Hams Say Hi To Juno

This computer-generated image depicts NASA's Juno spacecraft firing its Leros-1b main engine - credit NASA

This computer-generated image depicts NASA’s Juno spacecraft firing its Leros-1b main engine – credit NASA

Radio amateurs around the world took part in an experiment with NASA’s Juno spacecraft as it did a flyby of Earth.

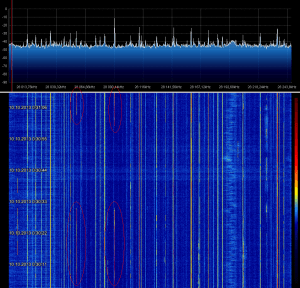

SDR display showing 28 MHz transmissions taken by Dmitry Pashkov UB4UAD

SDR display showing 28 MHz transmissions taken by Dmitry Pashkov UB4UAD

NASA’s Juno spacecraft flew past Earth on Wednesday, October 9, 2013 to receive a gravity assist from our planet, putting it on course for Jupiter.

To celebrate this event, the Juno mission invited amateur radio operators around the world to say “HI” to Juno in a coordinated Morse Code message that would be detected by Juno’s radio and plasma wave experiment, called Waves.

Radio amateurs transmitted Morse (CW) signals on a range of frequencies between 28.001 and 28.450 MHz. To give a random spread the precise frequency used depended on the last character of each stations call sign. The natural signals the team expect to measure at Jupiter will consist of a large number of discrete tones, so spreading the signals out in this manner was a good approximation to the signals Juno is expected to detect. But at Jupiter, they don’t expect to be able to decode CW in the telemetry!

The Waves instrument is sensitive to radio signals in all amateur bands below 40 MHz. However, experience with the University of Iowa instruments on the Galileo and Cassini Earth flybys showed significant shielding by the ionosphere at lower frequencies, so the 28 MHz band was chosen for the experiment.

Juno’s antenna consists of a pair of tapered 2.8 meter long titanium tubes, deployed from the bottom deck of the spacecraft under the +X solar array and magnetometer boom. A high impedance radiation resistant preamp sits at the base of the antenna and buffers the signals from 50 Hz to 45 MHz. The elements are deployed with an opening angle of about 120 degrees. 28 MHz is above the resonant frequency of the antenna and NEC analysis indicates a lobe generally along the spin axis of the spacecraft. This will be good for detection on the inbound part of closest approach to Earth.

The Waves instrument uses four receivers to cover the frequency range of 50 Hz to 41 MHz. Signals up to 3 MHz are bandpass filtered, sampled by A/D converters and FFT processed into spectra using a custom FFT processor developed by The University of Iowa under a grant from the Iowa Space Grant Consortium.

Among those taking part were students at Virginia Tech using their club station K4KDJ.

Watch Hi Juno de K4KDJ (Virginia Tech)

Dmitry Pashkov UB4UAD said Hi to Juno http://tinyurl.com/UB4UAD-Hi-Juno

Roland PY4ZBZ – Hi Juno http://tinyurl.com/PY4ZBZ-Hi-Juno

University of Iowa radio club hams it up with Jupiter probe
http://www.desmoinesregister.com/article/20131010/NEWS/310100078/U-radio-club-hams-up-Jupiter-probe

JPL Hi Juno page http://www.jpl.nasa.gov/hijuno/

NASA’s Juno probe to be Humankind’s fastest ever thing
http://www.theregister.co.uk/2013/10/09/juno_spacecraft_set_for_earth_flyby/

Radio hams to say “HI” to Juno on 10m

This computer-generated image depicts NASA's Juno spacecraft firing its Leros-1b main engine - credit NASA

This computer-generated image depicts NASA’s Juno spacecraft firing its Leros-1b main engine – Image credit NASA

NASA’s Juno mission is inviting amateur radio operators around the world to transmit a coordinated message on the 28 MHz band to the Juno spacecraft.

NASA’s Juno spacecraft will fly past Earth on October 9, 2013 to receive a gravity assist from our planet, putting it on course for Jupiter.

To celebrate this event, the Juno mission is inviting amateur radio operators around the world to say “HI” to Juno in a coordinated Morse Code message. Juno’s radio and plasma wave experiment, called Waves, should be able to detect the message if enough people participate.

Juno will have a better chance of detecting the signal from many operators if the signal is spread out across the spectrum. The Juno Waves instrument is a broadband receiver, and the detector being used for this event has a band width of 1 MHz. It is better for detection of the signal to have a broadband signal coming in.

For this experiment, the Juno team would like to ask those participating to spread out in frequency across the 10 meter band. They have supplied a table of suggested frequencies between 28 and 29 MHz, based on the last letter of your call. When the HFR receiver is tuned to 28MHz, the center frequency is 28.5 MHz. A 50 kHz high pass filter limits low frequencies hitting the detector, so the frequency table excludes 28.5 MHz ±50 kHz. The natural signals the team expect to measure at Jupiter will consist of a large number of discrete tones, so spreading the signals out in this manner is a good approximation to the signals Juno is expected to detect. But at Jupiter, they don’t expect to be able to decode CW in the telemetry!

The 28 MHz band was chosen for this experiment for several reasons. The Waves instrument is sensitive to radio signals in all amateur bands below 40 MHz, but experience with the University of Iowa instruments on the Galileo and Cassini earth flybys shows significant shielding by the ionosphere at lower frequencies. As sad as it sounds, the team hope for lousy band conditions on October 9, so an appreciable fraction of the radiated energy escapes the ionosphere into space, and is not refracted back down to the ground somewhere else on the planet.

Juno’s antenna consists of a pair of tapered 2.8 meter long titanium tubes, deployed from the bottom deck of the spacecraft under the +X solar array and magnetometer boom. A high impedance radiation resistant preamp sits at the base of the antenna and buffers the signals from 50 Hz to 45 MHz. The elements are deployed with an opening angle of about 120 degrees. Ten meters is above the resonant frequency of the antenna and NEC analysis indicates a lobe generally along the spin axis of the spacecraft. This will be good for detection on the inbound part of closest approach to Earth.

The Waves instrument uses four receivers to cover the frequency range of 50 Hz to 41 MHz. Signals up to 3 MHz are bandpass filtered, sampled by A/D converters and FFT processed into spectra using a custom FFT processor developed by The University of Iowa under a grant from the Iowa Space Grant Consortium.

The Juno team point out that All transmissions must follow local and national regulations.

Please join in, and help spread the word to fellow amateur radio enthusiasts!

NASA – Say “HI” to Juno! http://www.jpl.nasa.gov/hijuno/
See How do I participate ? for the frequency list.
