RadFxSat (Fox-1B) Launched, Designated AMSAT-OSCAR 91 (AO-91)

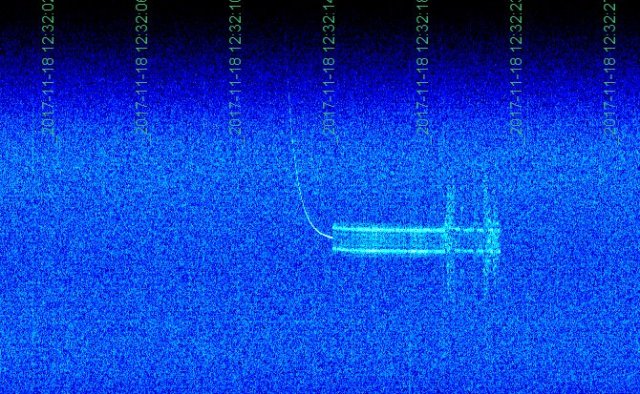

RadFxSat (Fox-1B) signal received by Mike Rupprecht DK3WN

RadFxSat (Fox-1B) signal received by Mike Rupprecht DK3WN

The Delta II rocket carrying RadFxSat (Fox-1B) launched at 09:47:36 UTC on November 18, 2017 from Vandenberg Air Force Base, California.

RadFxSat (Fox-1B) CubeSat

RadFxSat (Fox-1B) CubeSat

Following a picture-perfect launch, RadFxSat was deployed at 11:09 UTC. Then the wait began. At 12:12 UTC, the AMSAT Engineering team, watching ZR6AIC’s WebSDR waterfall, saw the characteristic “Fox Tail” of the Fox-1 series FM transmitter, confirming that the satellite was alive and transmitting over South Africa. Shortly after 12:34 UTC, the first telemetry was received and uploaded to AMSAT servers by Maurizio Balducci, IV3RYQ, in Cervignano del Friuli, Italy. Initial telemetry confirmed that the satellite was healthy.

After confirmation of signal reception, OSCAR Number Administrator Bill Tynan, W3XO, sent an email to the AMSAT Board of Directors designating the satellite AMSAT-OSCAR 91 (AO-91). Bill’s email stated:

“RadFxSat (Fox-1B) was launched successfully at 09:47 UTC today November 18, 2017 from Vandenberg Air Force Base in California and has been received by several amateur stations.

RadFxSat (Fox-1B), a 1U CubeSat, is a joint mission of AMSAT and the Institute for Space and Defense Electronics at Vanderbilt University. The Vanderbilt package is intended to measure the effects of radiation on electronic components, including demonstration of an on-orbit platform for space qualification of components as well as to validate and improve computer models for predicting radiation tolerance of semiconductors.

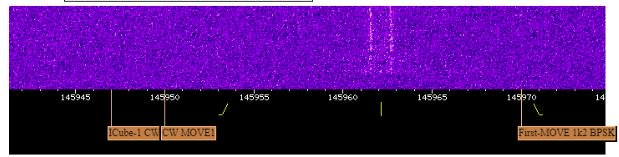

RadFxSat (Fox-1B) signal received at 12:12 GMT, Nov 18 by the ZR1AIC WebSDR in South Africa

RadFxSat (Fox-1B) signal received at 12:12 GMT, Nov 18 by the ZR1AIC WebSDR in South Africa

AMSAT constructed the remainder of the satellite including the spaceframe, on-board computer and power system. The amateur radio package is similar to that currently on orbit on AO-85 with a FM uplink on 435.250 MHz (67.0 Hz CTCSS) and a FM downlink on 145.960 MHz. Experiment telemetry will be downlinked via the DUV subaudible telemetry stream, which can be decoded using the FoxTelem software.

RadFxSat (Fox-1B) was sent aloft as a secondary payload on the United Launch Alliance (ULA) Delta II rocket that will transport the Joint Polar Satellite System (JPSS)-1 mission. RadFxSat (Fox-1B) is one of four CubeSats making up this NASA Educational Launch of Nanosatellites (ELaNa) XIV mission, riding as secondary payloads aboard the JPSS-1 mission.

Since RadFxSat (Fox-1B) has met all of the qualifications necessary to receive an OSCAR number, I, by the authority vested in me by the AMSAT President, do hereby confer on this satellite the designation AMSAT-OSCAR 91 or AO-91. I join amateur radio operators in the U.S. and around the world in wishing AO-91 a long and successful life in both its amateur and scientific missions.

RadFxSat (Fox-1B) LogoI, along with the rest of the amateur community, congratulate all of the volunteers who worked so diligently to construct, test and prepare for launch the newest amateur radio satellite.

William A. (Bill) Tynan, W3XO
AMSAT-NA OSCAR Number Administrator”

AMSAT Engineering reminds stations that the satellite will not be available for general use until the on-orbit checkouts are complete. Please continue to submit telemetry to assist the Engineering team in completing the commissioning process.

Source AMSAT News Service http://www.amsat.org/mailman/listinfo/ans

FoxTelem software https://www.amsat.org/foxtelem-software-for-windows-mac-linux/

Radio Programming Chart

RadFxSat (Fox-1B) Doppler Shift Correction

Memory 1 (AOS) – Transmit 435.240 MHz (67.0 Hz Tone), Receive 145.960 MHz
Memory 2 (Approaching) – Transmit 435.245 MHz (67.0 Hz Tone), Receive 145.960 MHz
Memory 3 (TCA) – Transmit 435.250 MHz (67.0 Hz Tone), Receive 145.960 MHz
Memory 4 (Departing) – Transmit 435.255 MHz (67.0 Hz Tone), Receive 145.960 MHz
Memory 5 (LOS) – Transmit 435.260 MHz (67.0 Hz Tone), Receive 145.960 MHz

Frequencies are subject to change post-launch.

Online real-time satellite tracking http://www.n2yo.com/

Keplerian Two Line Elements (TLEs) ‘Keps’:
• New satellites launched in past 30 days http://celestrak.com/NORAD/elements/tle-new.txt
• CubeSats http://celestrak.com/NORAD/elements/cubesat.txt
• Experimental satellites http://celestrak.com/NORAD/elements/x-comm.txt
• Engineering satellites http://celestrak.com/NORAD/elements/engineering.txt
• Amateur radio satellites http://www.amsat.org/amsat/ftp/keps/current/nasa.all

Initial post-launch Keplerian Two Line Elements (TLEs) ‘Keps’
RadFxSat
1 00000U 17000A 17322.46057870 -.00000000 00000-0 00000-0 0 00004
2 00000 97.6996 257.5922 0258900 235.2917 178.7268 14.79536000 07

AMSAT Bulletin Board (AMSAT-BB) http://www.amsat.org/mailman/listinfo/amsat-bb

RadFxSat (Fox-1B) Telemetry Reception Challenge

RadFxSat (Fox-1B) CubeSat

RadFxSat (Fox-1B) CubeSat

Get FoxTelem set up and ready to go on Saturday! The first amateur radio operator that successfully receives RadFxSat (Fox-1B) telemetry and uploads it to the AMSAT server will receive a commemorative 3D printed QSL card.

RadFxSat is scheduled for launch at 1:47am PST (09:47 UT) on Saturday, November 18 from Vandenberg Air Force Base, California. The first transmission from RadFxSat is expected to occur around 12:07 UT. Due to a lack of prelaunch Keplerian elements, it is not known exactly where the satellite will be when it makes it’s first transmission.

For further details regarding the Launch and Early Orbit Phase (LEOP) of RadFxSat operations, please see:
https://amsat-uk.org/2017/11/04/getting-ready-for-radfxsat-fox-1b/

FoxTelem software https://www.amsat.org/foxtelem-software-for-windows-mac-linux/

Follow the launch day chat on the #CubeSat IRC channel
https://riot.im/app/#/room/#freenode_#cubesat:matrix.org
http://irc.lc/freenode/cubesat

Initial post-launch Keplerian Two Line Elements (TLEs) ‘Keps’
RadFxSat
1 00000U 17000A 17322.46057870 -.00000000 00000-0 00000-0 0 00004
2 00000 97.6996 257.5922 0258900 235.2917 178.7268 14.79536000 07

AMSAT Bulletin Board (AMSAT-BB) http://www.amsat.org/mailman/listinfo/amsat-bb

AMSAT News Service http://www.amsat.org/mailman/listinfo/ans
