UWE-3 Status Report

UWE-3 X-Y-Z Axis Graph 2016-05-11On May 21, 2016 the CubeSat UWE-3 celebrated 2.5 years in space without any significant failures.

Batteries, EPS, OBC and ADCS are fine, nevertheless we were confronted with a minor problem with one of the radios UWE-3 autonomously recovered from. Since then UWE-3 is in a very stable condition again.

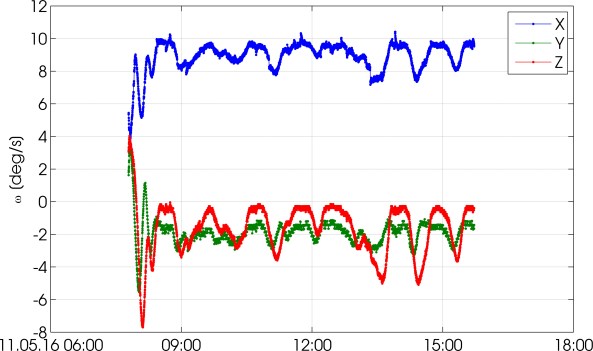

UWE-3 LogoSome weeks ago we have re-initiated operations with UWE-3 on an interim basis. The goal is to test new magnetic control algorithms in space. Therefore we operate the satellite on the 436.395200 MHz frequency and perform data downloads from time to time. In the figure below the satellite’s rotation rate w is shown for one of the experiments. The goal was to establish a rotation about the satellite’s X-axis (blue) at 10 deg/s while the Y/Z-axes should be at 0 deg/s. In general the desired rotation rate could be achieved but with major deviations from the setpoint. With the intention of optimizing the relevant control laws we will continue with these experiments within the next days and weeks.

During our experiments we received an outstanding support from the radio community from all over the world we are very thankful for. The received packets were instantaneous injected into our algorithms and delivered an important contribution to our research work. We would like to express our special thanks to DK3WN, PE0SAT, DL8MCO, EU1XX, ON4HF, Rainer, JA5BLZ, JA6PL, CU2JX, LU4EOU, JA1GDE, SP7THR, G7GQW, YC3BVG, JF1EUY, JE9PEL, JE1CVL, JO1PTD, ZL4JL, EA7ADI, K4KDR, JA0CAW, JH4XSY, PA2EON, SM0TGU. THANK YOU!

Yours sincerely,

UWE-3 Team

UWE-3 was launched with FUNcube-1 on November 21, 2013. Latest UWE-3 news at
