Hurricane Lorenzo: Amateur satellite AO-92 will be available in U/v mode

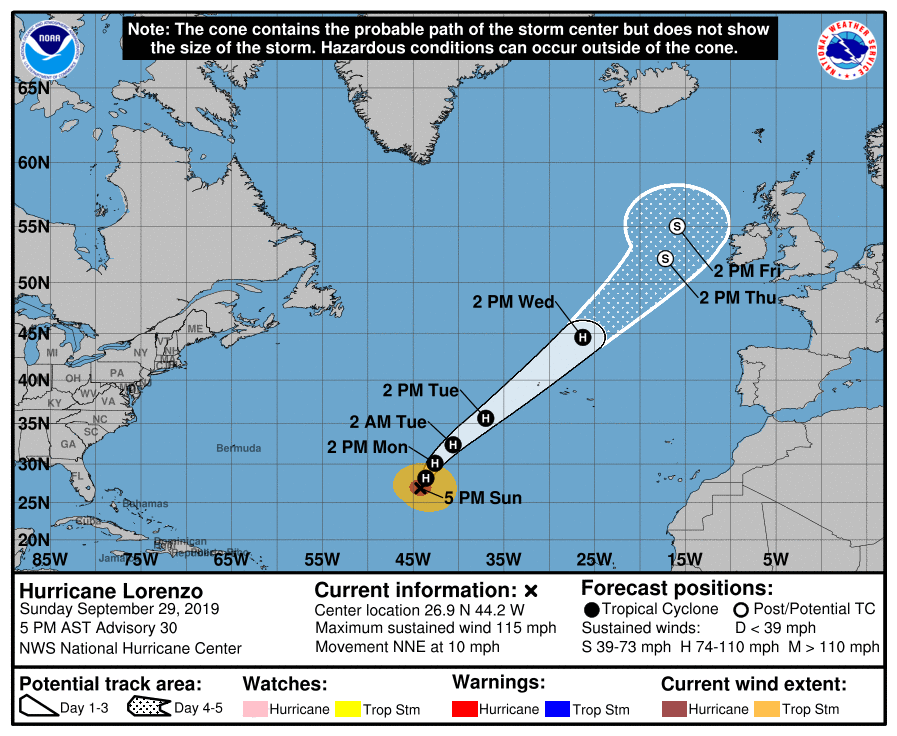

Hurricane Lorenzo estimated track

Hurricane Lorenzo estimated track

Drew Glasbrenner, KO4MA, AMSAT VP Operations has received a request from amateurs involved with emergency communications in the Azores, requesting we forego L/v operation on AO-92 this week.

AO-92 / Fox-1D CubeSat

AO-92 / Fox-1D CubeSat

AMSAT News Service reports:

Hurricane Lorenzo is expected to pass through the Azores as a Category 4 storm Tuesday and Wednesday, and they are requesting AO-92 remain in U/v for potential emergency traffic.

Please be aware of and yield to any emergency traffic, on any satellite, coming from the area during this time. Passes covering the Azores and Portugal are the most critical.

We realize that there have been a few moves and cancellations for this mode recently, and I ask for understanding and cooperation.

Emergency use is always first priority, and AMSAT is happy to assist in any way we can.

[ANS thanks Drew Glasbrenner, KO4MA, AMSAT VP Operations for the above information]

Source AMSAT News Service https://www.amsat.org/pipermail/ans/2019/001134.html

FM transponder satellite AO-92 open for amateur radio use

AO-92 / Fox-1D CubeSat

AO-92 / Fox-1D CubeSat

On the 03:25 UTC pass on January 26, 2018, AMSAT Vice President Engineering Jerry Buxton, N0JY, announced that AO-92 had been commissioned and formally turned the satellite over to AMSAT Operations. AMSAT Vice President – Operations Drew Glasbrenner, KO4MA, then declared that AO-92 was now open for amateur use.

Initially, the U/v FM transponder will be open continuously for a period of one week. After the first week, operations will be scheduled between the U/v FM transponder, L-Band Downshifter, Virginia Tech Camera, and the University of Iowa’s High Energy Radiation CubeSat Instrument (HERCI).

Schedule updates will appear in the AMSAT News Service Weekly Bulletins and will also be posted to the AMSAT-BB, AMSAT’s Twitter account (@AMSAT), the AMSAT North America Facebook group, and the AMSAT website at https://www.amsat.org/satellite-schedules/

AO-92 was launched on the PSLV-C40 mission from Satish Dhawan Space Centre in Sriharikota, India on January 12, 2018. For the past two weeks, the AMSAT Engineering and Operations teams have been testing the various modes and experiments on board. Testing has shown that both the U/v FM transponder and L-Band Downshifter work very well. The Virginia Tech camera has returned stunning photos and data from HERCI has been successfully downlinked.

AMSAT thanks the 178 stations worldwide that have used FoxTelem to collect telemetry and experiment data from AO-92 during the commissioning process. The collection of this data is crucial to the missions of AMSAT’s Fox-1 satellites. Please continue to collect data from AO-85, AO-91, and AO-92.

Radio Programming Chart – Fox-1D Doppler Shift Correction
Memory 1 (AOS) – TX 435.340 MHz (67.0 Hz Tone), RX 145.880 MHz
Memory 2 (Rise) – TX 435.345 MHz (67.0 Hz Tone), RX 145.880 MHz
Memory 3 (TCA) – TX 435.350 MHz (67.0 Hz Tone), RX 145.880 MHz
Memory 4 (Descend) – TX 435.355 MHz (67.0 Hz Tone), RX 145.880 MHz
Memory 5 (LOS) – TX 435.360 MHz (67.0 Hz Tone), RX 145.880 MHz

The L-band experiment will use 1267.350 MHz uplink with 145.880 MHz downlink. UHF and L-band uplink operation are set by the command stations; the operating schedule will be posted.

AMSAT Bulletin Board http://www.amsat.org/mailman/listinfo/amsat-bb

N2YO online real-time satellite tracking http://www.n2yo.com/

AMSAT-NA online orbital predictions http://www.amsat.org/track/

Keplerian Two Line Elements (TLEs) ‘Keps’ for new satellites launched in past 30 days
http://celestrak.com/NORAD/elements/tle-new.txt

Adding new satellites to SatPC32, Gpredict and Nova
https://amsat-uk.org/2013/11/23/adding-new-satellites-to-satpc32/

Ham radio CubeSat launch success

CNUSail-1 Credit KARI-Blog

CNUSail-1 Credit KARI-Blog

CubeSats carrying amateur radio payloads were among the 31 satellites successfully launched on January 12 at 0359 UT on the ISRO PSLV-C40 mission from Satish Dhawan Space Centre in Sriharikota, India.

Two of the CubeSats, Fox-1D and PicSat, carry amateur radio FM transponders, but neither is yet available for general amateur use. The PicSat FM transponder is unusual in that instead of a CTCSS tone it requires a 1750 Hz tone burst to activate. The 1750 Hz tone burst used to be popular on IARU Region 1 FM repeaters in the 1980s and 90s before the widespread use of CTCSS.

CNUSail-1, built by students at the Chungnam National University in Korea, carries a deployable sail. The students have requested the help of radio amateurs in receiving the 437.100 MHz 9600 bps BPSK beacon, further information is available at https://sites.google.com/view/cnuusg

JE9PEL lists these frequencies for the satellites carrying amateur radio payloads:

Fox-1D (AO-92) 145.880 down 435.350/1267.350 up FM CTCSS 67.0Hz/200bps DUV
PicSat         435.525 1200bps BPSK
CNUSail-1      437.100 9600bps BPSK
SIGMA          435.780 MHz BPSK 9600 bps
Canyval-X 1/2  437.200 9600bps MSK
KAUSAT-5       437.465/2413.000 9600bps FSK,115k2 MSK
STEP-1         437.485 9600bps FSK CW

Shankar A65CR/VU2SWG reported coping the Fox-1D satellite voice beacon on the morning pass at 30 deg elevation in Dubai using a TH-F7 with standard rubber duck. YL voice with satellite identifier. Very short burst with fluctuating carrier.

Madhu A65DE also copied Fox-1D from Fujairah, North of Dubai.

Picture taken by Fox-1D AO-92 on January 13, 2018

Picture taken by Fox-1D AO-92 on January 13, 2018

AMSAT North America has issued a statement formally designating Fox-1D as AO-92:

Fox-1D, a 1U CubeSat, is the third of AMSAT’s five Fox-1 CubeSats to reach orbit, being preceded by AO-85 (Fox-1A) and AO-91 (RadFxSat / Fox-1B). Fox-1D carries the Fox-1 U/v FM transponder, with an uplink of 435.350 MHz (67.0 Hz CTCSS) and a downlink of 145.880 MHz. In addition, Fox-1D carries several university experiments, including a MEMS gyro from Pennsylvania State University – Erie, a camera from Virginia Tech, and the University of Iowa’s HERCI (High Energy Radiation CubeSat Instrument) radiation mapping experiment. Fox-1D also carries the AMSAT L-Band Downshifter experiment which enables the FM transponder to be switched to utilize an uplink of 1267.350 MHz (67.0 Hz CTCSS).

Fox-1D was sent aloft as a secondary payload on the Indian Space Research Organisation (ISRO)’s PSLV-XL rocket as part of the PSLV-C40 mission. Fox-1D was one of thirty-one satellites successfully deployed on this launch.

Since Fox-1D has met all of the qualifications necessary to receive an OSCAR number, I, by the authority vested in me by the AMSAT President, do hereby confer on this satellite the designation AMSAT-OSCAR 92 or AO-92. I join amateur radio operators in the U.S. and around the world in wishing AO-92 a long and successful life in both its amateur and scientific missions.

I, along with the rest of the amateur community, congratulate all of the volunteers who worked so diligently to construct, test and prepare for launch the newest amateur radio satellite.

William A. (Bill) Tynan, W3XO
AMSAT-NA OSCAR Number Administrator

Further information on the Fox-1D launch, deployment and designation at
https://www.amsat.org/fox-1d-launched-designated-amsat-oscar-92/

Pictures taken by Fox-1D (AO-92) http://www.amsat.org/tlm/fox1d/images/

Information on PicSat is available via
https://amsat-uk.org/2018/01/10/picsat/

Report on the five Korean satellites that were launched
http://koreabizwire.com/cube-satellites-built-by-university-students-launched-into-outer-space/107445
