Tag Archives: Kibo

Oct 2 2021

Ham radio CubeSats to deploy from ISS

Kibo Robot Arm CubeSat Deployment

Kibo Robot Arm CubeSat Deployment

It is expected four CubeSats carrying amateur radio payloads will be deployed on the morning of Wednesday, October 6.

You can watch live at these URL’s:
#1 0855-0945 GMT Binar-1, Maya-3, Maya-4
https://www.youtube.com/watch?v=gDnhIniV1FU
#2 1035-1105 GMT CUAVA-1
https://www.youtube.com/watch?v=UHbRKOzzvp0

On the AMSAT Bulletin Board Masa JN1GKZ writes:

JAXA announced four CubeSats deploy from ISS at Oct 6 with J-SSOD. The satellites are Binar-1, Maya-3, Maya-4 and CUAVA-1. All the satellites operate on amateur band.

The deployment sked is followings.
#1 0850-0940z Binar-1, Maya-3, Maya-4
#2 1030-1100z CUAVA-1

The deployment will be live on the JAXA YouTube channel.

Binar-1 – 1U CubeSat Australia
Downlink 437.292 MHz, 435.810 MHz 19k2 GMSK
Uplink 435.810 MHz
http://www.amsatuk.me.uk/iaru/finished_detail.php?serialnum=730
https://www.binarspace.com/

Maya-3/4 – part of the BIRDS Project 1U CubeSat Philippines
Downink 145.825 MHz APRS, 437.375 MHz CW, 4k8 GMSK
http://www.amsatuk.me.uk/iaru/finished_detail.php?serialnum=711
http://www.amsatuk.me.uk/iaru/finished_detail.php?serialnum=712
https://stamina4space.upd.edu.ph/upcoming-satellites/maya-3and4/

CUAVA-1 3U CubeSat Australia
Downlink 437.075 MHz 9k6 GMSK
Uplink 145.875 MHz
http://www.amsatuk.me.uk/iaru/finished_detail.php?serialnum=671
https://www.cuava.com.au/projects/cuava-1/

Happy chasing!
Masa JN1GKZ
Tokyo Japan

AMSAT Bulletin Board https://www.amsat.org/amsat-email-lists/

Jan 14 2017

Six CubeSats to Deploy from ISS

International Space Station - Image Credit NASA

International Space Station – Image Credit NASA

Masahiro Arai JN1GKZ reports that six CubeSats delivered to the International Space Station by the HTV-6 will deploy from the ISS using the new JEM Small Satellite Orbital Deployer (J-SSOD) on Monday, January 16.

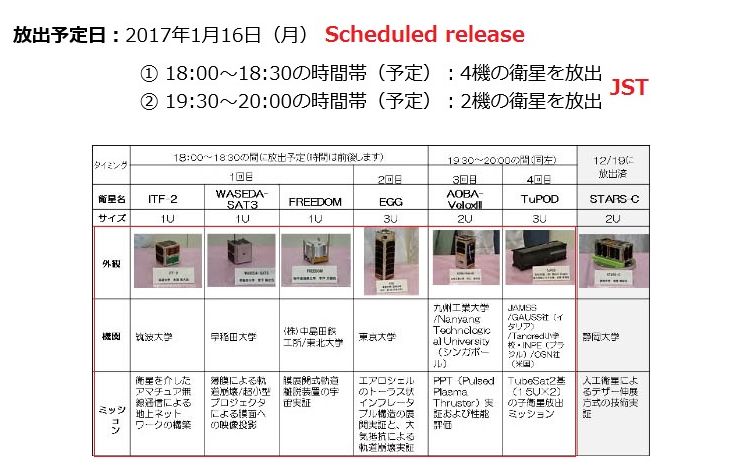

JAXA ISS CubeSat Deployment 2017-01-16The new J-SSOD has four satellite install cases. One satellite install case has 3U space, so the new J-SSOD could deploy twelve 1U CubeSats at a time.

The six CubeSats are installed as follows:

Case    CubeSats
#1        three 1U CubeSats ITF-2、WASEDA-SAT3、FREEDOM
#2        one 3U CubeSat    EGG
#3        one 2U CubeSat    AOBA-VELOX3
#4        one 3U CubeSat    TuPOD (including Tancredo1 and OSNSAT)

ITF-2、WASEDA-SAT3、AOBA-VELOX3, TuPOD and Tancredo1 have amateur radio downlinks.

#1 and #2 will be deployed at 0900-0930z January 16, #3 and #4 will be 1030-1100z.

Live broadcast will start at 0850z on the JAXA YouTube channel.

IARU Amateur Satellite Frequency Coordination http://amsat.org.uk/iaru

Middle School Students’ Tancredo-1 TubeSat Scheduled for Launch
https://amsat-uk.org/2016/12/02/school-tancredo-1-tubesat/

ITF-2 CubeSat to deploy from ISS
http://www.southgatearc.org/news/2017/january/itf-2-cubesat-to-deploy-from-iss.htm

ITF-2 reception report form https://operationitf-2.blogspot.co.uk/p/blog-page_58.html

Sep 27 2014

TuPOD to enable ISS TubeSat deployment in 2015

TubeSat - Image Credit Interorbital Systems

TubeSat in space – Image credit Interorbital Systems

The TuPOD 3U mission will allow the in-orbit deployment of the first TubeSats – Tancredo 1, from Brazil and Ulises 1, from Mexico.

Both satellites are educational satellites and involve young students in the projects. TuPOD will integrate the two satellites inside a 3U CubeSat Structure designed to allow the coupling between TubeSat and the Japanese Experiment Module (JEM) Small Satellite Orbital Deployer (J-SSOD) launch mechanism.

The TuPOD will release the two satellites after 2 days, in accordance with NASA safety requirements. After the TubeSat deployment, the TuPOD will start is own mission receiving and sending data to amateur radio ground stations.

The TuPOD electronics have been designed by students at Morehead State University and is an updated version of $50SAT PocketQube electronics and Telemetry, Tracking & Command (TT&C) system.

Proposing a 1k2 GMSK UHF downlink and now expected to be deployed fom the ISS in spring 2015.

Tancredo 1 http://www.frequency.com/video/pres-tancredo-de-almeida-neves/176861394

Ulises 1 in Google English http://tinyurl.com/Ulises-1-TubeSat

IARU Satellite Frequency Coordination Panel http://www.amsat.org.uk/iaru

Jul 28 2013

JAXA Plan CubeSat Deployment from ISS

Kibo Robot Arm CubeSat Deployment

Kibo Robot Arm CubeSat Deployment

Masa JN1GKZ reports on four CubeSats that are being sent to the International Space Station on August 4, 2013.

The Japanese space agency JAXA has announced that four CubeSats will be deployed from the ISS by the JEM Small Satellite Orbital Deployer (J-SSOD).

The four CubeSats are:
• PicoDragon a 1U CubeSat developed by Vietnam National Satellite Center(VNSC), University of Tokyo, IHI aerospace. CW beacon on 437.250 MHz and 1k2 AFSK AX.25 telemetry on 437.365 MHz
• ArduSat-1 and ArduSat-X 1U CubeSats developed by Nanorack, NanoSatisfi. ArduSat-1 437.325 MHz 9k6 MSK CCSDS downlink. ArduSat-X 437.345MHz 9k6 MSK CCSDS downlink.
• TechEdSat-3 a 3U CubeSat developed by NASA Ames Research Center

All the satellites should be sent to the ISS by the HTV-4 launcher on August 4, 2013.

The four CubeSats are expected to be deployed from the ISS sometime between October 2013 and March 2014.

It is believed that the company Nanorack will be deploying a number of CubeSats from the ISS this year, they may also be going to the ISS on HTV-4. Aviation Week say Nanorack expects to launch as many as 38 of the units on the first mission. Since CubeSats can be 1U, 2U or 3U in size it’s likely that the number of CubeSats will be less than 38. A figure of 26 CubeSats has been quoted on the IARU amateur satellite frequency coordination page but it is unclear how many of those will be carrying amateur radio payloads.

It is understood Nanorack charge $85,000 per 1U CubeSat for its ISS deployment service, see the Nanorack article at
http://www.aviationweek.com/Article.aspx?id=%2Farticle-xml%2FAW_07_22_2013_p28-597963.xml

Also on the HTV-4 launch in August will be the HamVideo transmitter, part of the 2.4 GHz HamTV system. This will be installed in the ISS Columbus module.
https://amsat-uk.org/2013/05/12/hamtv-from-the-iss/

NASA Interns build a CubeSat
https://amsat-uk.org/2013/07/25/interns-build-a-cubesat/

Oct 5 2012

NASA Release Amateur Radio CubeSat Deployment Pictures

Amateur Radio CubeSats TechEdSat, F-1 and FITSAT-1 pass the ISS solar panels

NASA have released photographs of the amateur radio CubeSats TechEdSat, F-1 and FITSAT-1 taken by an Expedition 33 crew member on the International Space Station (ISS).

Continue reading →

Oct 5 2012

ISS Amateur Radio CubeSats Deployed

Kibo Robot Arm CubeSat Deployment

Kibo Robot Arm CubeSat Deployment – Image Credit JAXA

On October 4, 2012 five CubeSats were successfully deployed from the International Space Station (ISS). The first pod containing RAIKO and WE-WISH was deployed at 1437 UT while the second pod containing FITSAT-1, F-1 and TechEdSat deployed at 1544 UT. Pictures can be seen at http://www.uk.amsat.org/?p=10804

October 4 was also the 55th anniversary of the launch of the first satellite Sputnik 1. Videos of Sputnik are here.

Four of the CubeSats carry Amateur Radio payloads, they are TechEdSat, F-1, FITSAT-1, and WE-WISH. As of Oct 5, 1015 UT signals had been reported from WE-WISH and FITSAT-1 as well as weak signal reports for TechEdSat.

ISS CubeSat Frequency Chart – Image Credit Mike Rupprecht DK3WN

Continue reading →
