Nayif-1 Status Report and New Dashboard

UAE Nayif-1 CubeSatThe Nayif-1 (EO-88) CubeSat has now been in orbit for more than two weeks and all systems continue to operate nominally.

The power budget is positive, the spin/tumble rate is acceptably low, on board temperatures are perfectly okay and, importantly, the educational/amateur transponder switching is taking place autonomously as  planned.

More than 250 stations around the world have provided telemetry to the Nayif Data Warehouse and the FUNcube Team are extremely grateful to them for their invaluable support.

The experts have now formally allocated Catalog Number 42017 to Nayif-1 (EO88) and the TLEs can now be downloaded from Celestrak – TLEs

New Dashboards

The FUNcube Team have now updated the Dashboards for both Nayif-1 and FUNcube-1 so that they display only the telemetry received from the individual spacecraft that they are designed for. This will help users to display only the correct information and graphs and reduce confusion. Whilst they only display the data from ONE spacecraft, they will, as now, receive and decode the data from all FUNcube payloads currently in orbit and automatically submit it to the relevant Data Warehouse.

The new Dashboard for FUNcube-1 (ver 1044) can be downloaded from here: FUNcube Dashboard Installer 1044

The new Dashboard for Nayif-1 (ver 1040) can be downloaded from here: Nayif-1 Dashboard Installer 1040

Additionally some command line parameters have been added to enable the programmes to auto-start with the desired parameters.  These are:

/minimized
/autostart
/source=dongle
or
/source=soundcard

Some notes on how to implement these parameters can be found here: funcube-dashboard-autostart

Nayif-1 Data Warehouse http://data.amsat-uk.org/nayif1/

Ham radio satellite transmits Vice President’s message
https://amsat-uk.org/2017/02/25/nayif-1-uae-vice-president-message/

Nayif-1 Launched https://amsat-uk.org/2017/02/15/nayif-1-launched/

OSCAR Number for Nayif-1

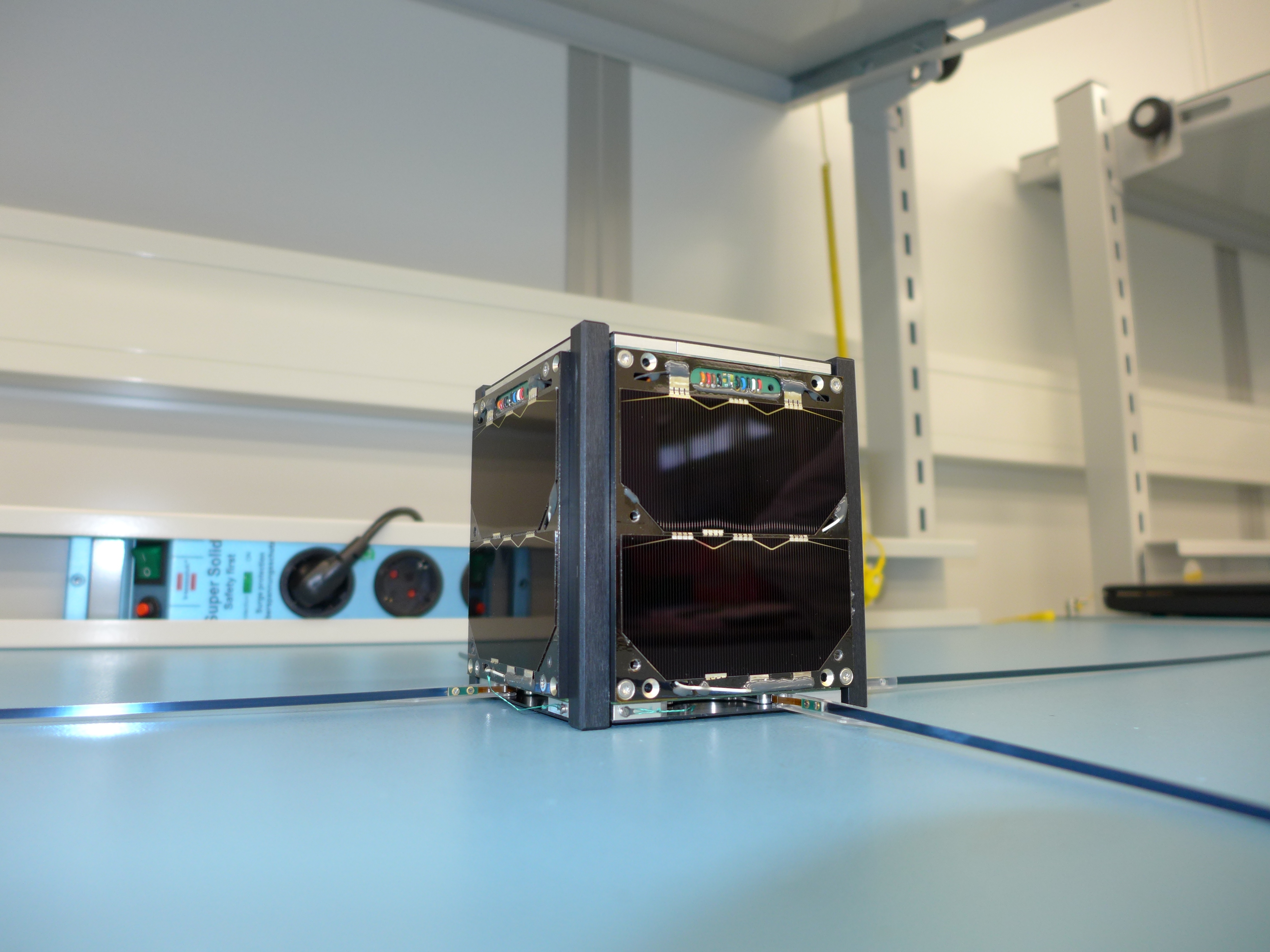

Nayif-1 CubeSat - Credit Wouter Weggelaar PA3WEG

Nayif-1 CubeSat – Credit Wouter Weggelaar PA3WEG

OSCAR Number Administrator Bill Tynan W3XO has announced that the Nayif-1 CubeSat has met all the requirements necessary to be issued with an OSCAR number.

In accordance with the request sent to the AMSAT-NA Board of Directors for an OSCAR number for the UAE CubeSat, Nayif-1, and the statement that all of the conditions for an OSCAR number have been met, I hereby by the authority vested in me by the AMSAT-NA president, do convey on Nayif-1 the designation Emirates Oscar 88 or EO-88.

Along with the rest of the Amateur Radio satellite community, I hope that EO-88 will meet all of its objectives.

I wish you and your group the best of luck in this and future endeavors to keep Amateur Radio in space.

OSCAR Numbers Policy http://www.amsat.org/?page_id=2478

Ham radio satellite transmits Vice President’s message
https://amsat-uk.org/2017/02/25/nayif-1-uae-vice-president-message/

Nayif-1 Launched https://amsat-uk.org/2017/02/15/nayif-1-launched/

Ham radio satellite transmits Vice President’s message

UAE Nayif-1 CubeSatThe National newspaper reports a message by Sheikh Mohammed bin Rashid, Vice President and Ruler of Dubai, is being beamed across the world from space as the first to be transmitted by the UAE’s Nayif-1 satellite.

The National says:

Nayif-1 was launched February 15 from Satish Dhawan Space Centre in India and is being tracked by a team of scientists at a control centre at American University of Sharjah.

The country’s first nanosatellite is transmitting the message in Arabic which reads: ‘The renaissance of peoples, nations and civilizations starts with education; and the future of nations starts at their schools.’

Nayif-1 was developed by UAE students - Image credit The Mohammed bin Rashid Space Centre

Nayif-1 was developed by UAE students – Image credit The Mohammed bin Rashid Space Centre

Nayif-1’s main mission objective is to send and receive messages on amateur radio frequencies.

The nanosatellite boasts a number of advanced features, most notably it is programmed to transfer messages in Arabic.

Fatma Lootah, deputy project manager of Nayif-1 at the Mohammed bin Rashid Space Centre, said the transmission was a landmark moment for the team.

“There is a large community of amateur radio operators and if Arab operators get this message in their own language I think a lot of them will be inspired,” said Ms Lootah.

At AUS, seven engineering students collaborated with the space centre in the designing, building, testing and operating of Nayif-1.

Read the full story at
http://www.thenational.ae/uae/science/vice-presidents-message-comes-through-as-uae-satellite-begins-operations

The telemetry data mentioned in the article can be found at http://data.amsat-uk.org/nayif1

Nayif-1 Launched https://amsat-uk.org/2017/02/15/nayif-1-launched/

Nayif-1 https://amsat-uk.org/satellites/communications/nayif-1/

Nayif-1 team members after completion of the assembly and integration of the CubeSat

Nayif-1 team members after completion of the assembly and integration of the CubeSat

Nayif-1 Launched

ISRO PSLV-C37 Launch at 0358 UT February 15, 2017

ISRO PSLV-C37 Launch

The Indian Space Agency ISRO successfully launched the amateur radio satellite Nayif-1 along with 103 other satellites, a record for a single launch. The PSLV-C37 lifted off from the Satish Dhawan Space Centre, Sriharikota, Andhra Pradesh at 03:58 UT on Wednesday, February 15, 2017.

Nayif-1 was developed by UAE students - Image credit The Mohammed bin Rashid Space Centre

Nayif-1 was developed by UAE students – Image credit The Mohammed bin Rashid Space Centre

Nayif-1 started transmitting about an hour after launch and radio amateurs in the west of the USA reported the first signals. The first frame of data received at the Data Warehouse was from Christy Hunter KB6LTY. Telemetry data was also received by WA6FWF, KA7FVV, WC7V, NC7V, K6FW, KE7QPV, WA9ONY, W5PFG, KK6AYK.

Ken Eaton GW1FKY reports he received his first frames of data when the satellite came in range of the UK at 10:07 UT.

The satellite looks to be in perfect health and it was placed in autonomous mode before the end of the first day in orbit. Just like FUNcube-1, this mode has the spacecraft sending high power telemetry when in sunlight and with the SSB/CW transponder active when in eclipse. Already many contacts have been made through the transponder. As expected, the frequency stability of this spacecraft is much better than its predecessors.

The launch provider has published a video of the deployment of the 104 satellites

A new post-launch set of TLE’s has been issued by the launch authority and it can be downloaded from http://amsat-nl.org/download/NAYIF_TLE.txt

Please note that these numbers are not based on JSpOC observations so we do not yet have a valid catalog number.

On February 24, Nico Janssen PA0DLO reported that detailed Doppler measurements show that Nayif-1 is object 42017, 2017-008BX

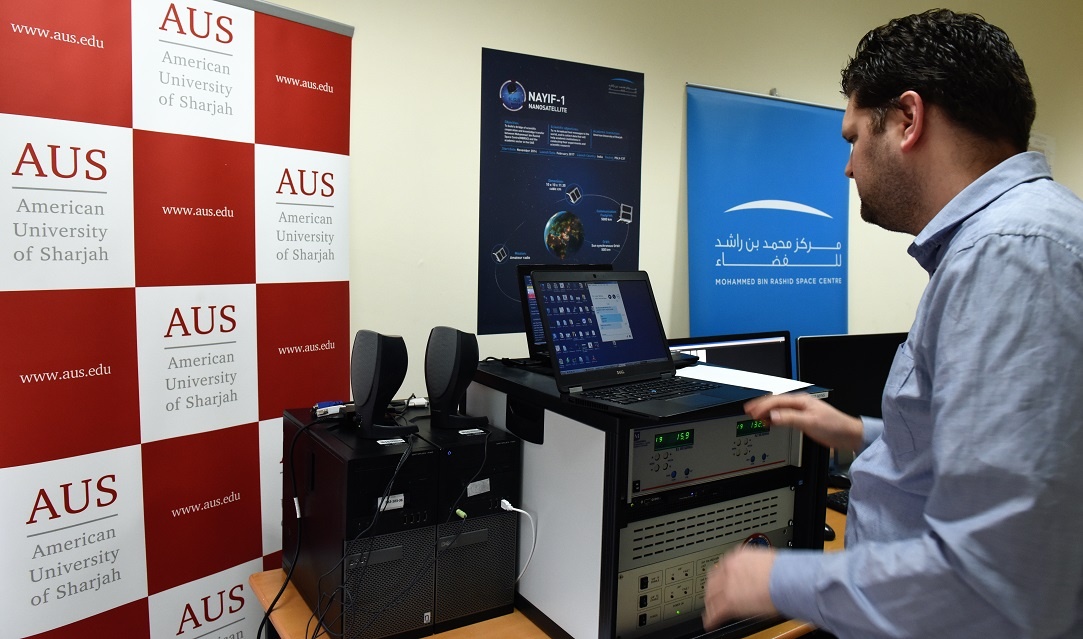

During the Launch and Early Operation phase (LEOP) of the mission, the Nayif-1 command team have been headquartered at the American University of Sharjah Ground station in the United Arab Emirates. They have been very grateful for all the telemetry received from around the world. It has proven to be immensely useful to the team in checking that the spacecraft is functioning correctly.

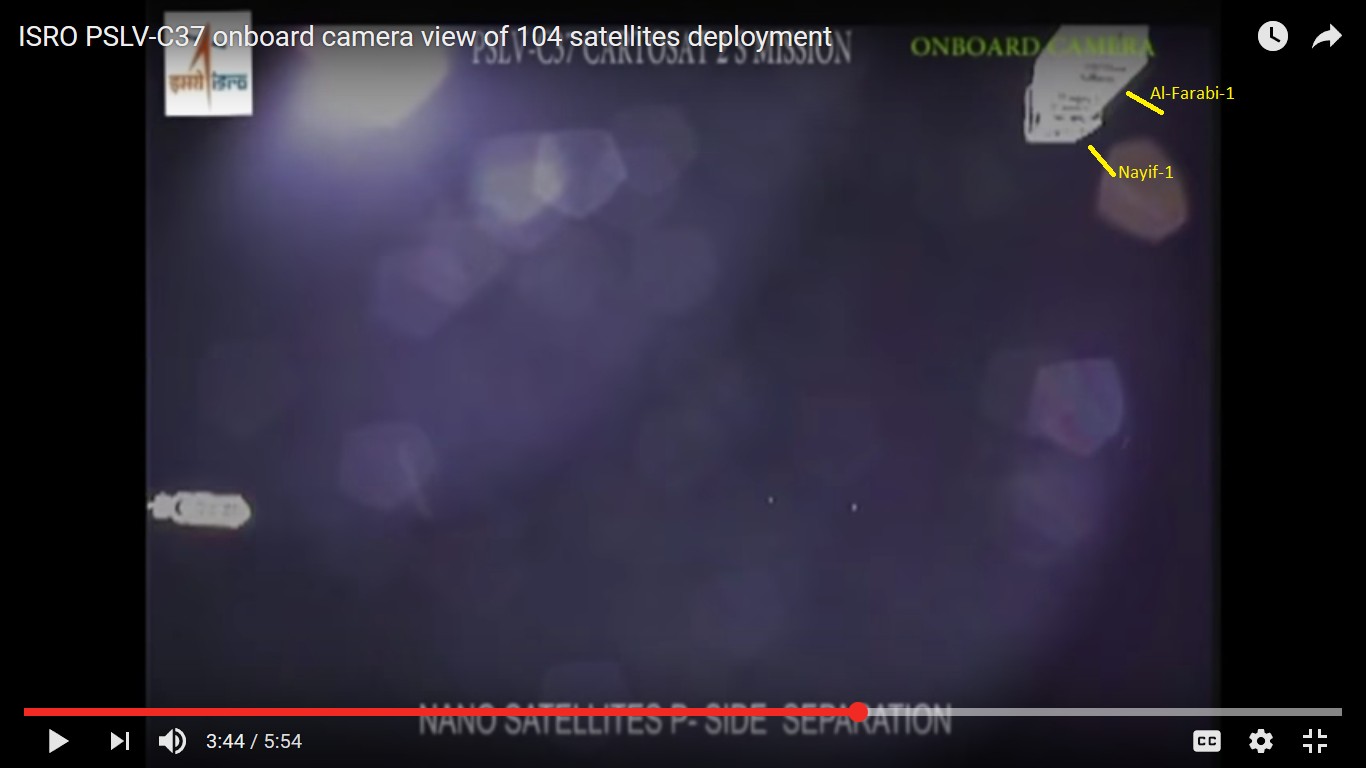

Nayif-1 Deployment

Nayif-1 Deployment

Our world-wide network has greatly impressed the many professionals that have been watching our activities. Already more than 100 ground stations are submitting data to the Nayif Data Warehouse. Please continue uploading the data as this will further enhance our knowledge about the spacecraft and the space environment through which it is traveling at 7.6 km/s.

The Nayif-1 Data Warehouse has been updated and now includes the Whole Orbit, High Resolution graphs and the upload ranking. It also includes telemetry details from the ADCS sub-system – this is called the iMTQ and is capable of actively magnetorquing. Over the coming days, we will be further tweaking the warehouse, so bear with us if it is unavailable for short periods of time.

Background
Nayif-1 has been developed by the Mohammed bin Rashid Space Centre (MBRSC) and American University of Sharjah (AUS). The UAE’s first Nanosatellite was developed by Emirati engineering students from AUS under the supervision of a team of engineers and specialists from MBRSC within the framework of a partnership between the two entities, aiming to provide hands-on experience to engineering students on satellite manufacturing.

Nayif-1 Mission PatchThe spacecraft includes a U/V linear transponder and telemetry transmitter. It employs enhanced oscillator circuitry and includes an active attitude determination and control system.

The operating frequencies for the spacecraft are:

Telemetry
145.940 MHz using 1k2 BPSK to the FUNcube standard.

SSB/CW Transponder
Uplink on 435.045 – 435.015 MHz
Downlink on 145.960 – 145.990 MHz

The Nayif-1 Telemetry Dashboard can be downloaded from
http://download.funcube.org.uk/nayif-1_Dashboard_1039_Installer.msi

Guidance notes https://funcubetest2.files.wordpress.com/2017/02/nayif-1_dashboard_notes_release_1-0b.pdf

A file to test that the Dashboard and Warehouse configuration are working correctly
http://download.funcube.org.uk/nayif1_testfile.funcubebin

Nayif-1 Data Warehouse http://data.amsat-uk.org/nayif1/

Pre-launch TLEs (use those from link above) http://download.funcube.org.uk/nayif_tle.txt

Keplerian Two Line Elements (TLEs) ‘Keps’ for satellites launched in past 30 days, Nico PA0DLO suggests using object 42017, 2017-008BX http://celestrak.com/NORAD/elements/tle-new.txt

Adding new satellites to SatPC32, Gpredict and Nova
https://amsat-uk.org/2013/11/23/adding-new-satellites-to-satpc32/

ISIS gets 101 CubeSats launched during record breaking PSLV launch
https://www.isispace.nl/dutch-nanosatellite-company-gets-101-cubesats-launched-recordbreaking-pslv-launch/

Nayif-1 CubeSat Launch Announced

Nayif-1 team members after completion of the assembly and integration of the CubeSat

Nayif-1 team members after completion of the assembly and integration of the CubeSat

AMSAT-UK and AMSAT-NL are delighted to now be able to confirm that the Nayif-1 1U CubeSat, which has a full FUNcube payload, is now scheduled for launch on an Indian PSLV launch vehicle at 03:58 UT on February 15, 2017. The flight, PSLV-C37, will be carry a total of 104 satellites into orbit.

UPDATE Feb 14: Nayif-1 TLEs for tracking are at http://download.funcube.org.uk/nayif_tle.txt
Join in the Nayif-1 launch day chat on the FUNcube IRC channel, your reception reports are most welcome, see http://irc.lc/freenode/funcube (If you have a Callsign put it in the nickname field)

The 145.940 MHz 1k2 BPSK telemetry beacon, running 50mW output, should activate  at approximately 04:54 UT on Wednesday, February 15 when the spacecraft is heading north over Mexico and the western parts of the US and Canada.

Nayif-1 was developed by UAE students - Image credit The Mohammed bin Rashid Space Centre

Nayif-1 was developed by UAE students – Image credit The Mohammed bin Rashid Space Centre

During the Launch and Early Operation Phase (LEOP) of the mission, the Nayif-1 command team will be headquartered at the American University of Sharjah Ground station in the United Arab Emirates. They will obviously be especially keen to have all possible reports of signal reception during this first orbit!

To encourage everyone to take part, there will be a small prize for the stations that submit the first data to the Nayif-1 Data Warehouse. Please help the team if you can.

Nayif-1 has been developed by the Mohammed bin Rashid Space Centre (MBRSC) and American University of Sharjah (AUS). The UAE’s first Nanosatellite was developed by Emirati engineering students from AUS under the supervision of a team of engineers and specialists from MBRSC within the framework of a partnership between the two entities, aiming to provide hands-on experience to engineering students on satellite manufacturing.

Hessa Ali and Maitha Al Shizawi verifying the Nayif-1 hardware as well as conducting electrical and functional tests

Hessa Ali and Maitha Al Shizawi verifying the Nayif-1 hardware as well as conducting electrical and functional tests

The spacecraft includes a U/V linear transponder and telemetry transmitter. It employs enhanced oscillator circuitry and includes an active attitude determination and control system.

As with previous missions carrying FUNcube payloads, AMSAT-UK would very much like to receive as many reports from stations around the world, especially during the first few minutes and hours after launch.

There is a mission specific Telemetry Dashboard for this project and this can be downloaded from http://download.funcube.org.uk/Nayif-1_Dashboard_1038_installer.msi  and, in a similar way to the FUNcube-1 Dashboard, this will be capable of uploading the telemetry received to a central Data Warehouse.

Guidance Notes for the installation of the Dashboard, integration with a FUNcube Dongle and the Data Warehouse have been prepared for the Nayif-1 mission. These can be downloaded from https://funcubetest2.files.wordpress.com/2017/02/nayif-1_dashboard_notes_release_1-0b.pdf

A file to test that the Dashboard and Warehouse configuration are working correctly can be downloaded from  http://download.funcube.org.uk/nayif1_testfile.funcubebin

The Data Warehouse is still under final development but can be viewed at http://data.amsat-uk.org/nayif1/

Please note that if you are already a registered user of the FUNcube Dashboard then you do not need to re-register. Your existing details will transfer automatically to the new Dashboard when you run it for the first time.

The operating frequencies for the spacecraft will be:

Telemetry
145.940 MHz using 1k2 BPSK to the FUNcube standard.

SSB/CW Transponder
Uplink on 435.045 – 435.015 MHz
Downlink on 145.960 – 145.990 MHz

Initial operations of the spacecraft will be in a low power “safe” mode where only the telemetry transmitter is activated.

ISRO PSLV-C37 brochure http://www.isro.gov.in/pslv-c37-cartosat-2-series-satellite/pslv-c37-brochure

Deputy project manager of Nayif-1 Fatma Lootah

Deputy project manager of Nayif-1 Fatma Lootah

UAE satellite will have Amateur Radio transponder

Nayif-1 was developed by UAE students - Image credit The Mohammed bin Rashid Space Centre

Nayif-1 was developed by UAE students – Image credit The Mohammed bin Rashid Space Centre

The United Arab Emirates newspaper The National reports on the Nayif-1 spacecraft developed by Emirati students from the American University of Sharjah in partnership with The Mohammed bin Rashid Space Centre.

Nayif-1 carries a 435/145 MHz transponder (FUNcube-5) for amateur radio SSB/CW communications. It is expected to launch along with other amateur radio satellites such as Fox-1C and Fox-1D on a SpaceX rocket between September and November 2016.

Nayif-1 CubeSat - Credit Wouter Weggelaar PA3WEG

Nayif-1 CubeSat – Credit Wouter Weggelaar PA3WEG

The National says:

Yousuf Al Shaibani, director general of The Mohammed bin Rashid Space Centre, said the satellite’s development was a testament to its commitment to develop Emirati talent.

“There is no doubt that the field of satellite design and manufacturing is a new industry to UAE universities and students,” Mr Al Shaibani said.

“The Emirati students possess the skills and capabilities to design and build a CubeSat as a result of a knowledge-transfer strategy and cooperation between academic and professional institutions that are launching real space projects, enabling students to see the product of their work as a reality in space.”

The satellite is about 10 cubic centimetres and weighs about 1 kilogram. One of its most notable features is that it is programmed to transfer messages in Arabic.

“This is a great achievement and a source of pride for all of us,” said Dr Bjorn Kjerfve, chancellor of American University of Sharjah.

Watch the insertion of Nayif-1 into the QuadPack deployer

Read the National story at
http://www.thenational.ae/uae/science/first-satellite-developed-by-emirati-students-ready-for-launching

Nayif-1 CubeSat https://amsat-uk.org/satellites/communications/nayif-1/
