Hojun Song DS1SBO performing final assembly of OSSI-1 satellite on April 9, 2013
The OSSI-1, BEESAT-2, BEESAT-3 and SOMP amateur radio CubeSats lifted off on a Soyuz-2-1a with research satellites Bion-M1, AIST and Dove-2 from Launch Complex 31 at Baikonur in Kazakhstan on Friday, April 19 at 1000 UT. The OSSI-1 CubeSat was deployed from its Pod on the top of Bion-M1 at 1615 UT.
Soyuz-2-1a Lift-off – Image credit SpaceShuttleAlmanac
The launch vehicle went into an initial elliptical orbit of 290 km by 575 km orbit at an inclination of 64.9°. A series of orbital maneuvers will be carried out to raise the orbit to 575 km circular before BEESAT-3, SOMP, then BEESAT-2 are deployed at around 1045 UT on Sunday, April 21.
The Center for Operation of Space Ground-Based Infrastructure said the satellites attached to the outer surface of the spacecraft “Bion-M” will be deployed in the period between the 4th and the 35th orbit. It is thought this may mean deployments will take place on the 4th and the 32-34th orbit but that there will be no deployments on the other obits.

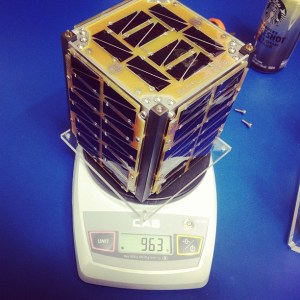

OSSI-1 weighs 963 grams
Korean artist Hojun Song DS1SBO has spent 7 years developing his Open Source Satellite Initiative satellite OSSI-1. He has designed and built it from scratch using readily available components rather than expensive space qualified hardware. The launch was the most expensive part of the project costing $100,000.
It has a 12 WPM CW Morse code beacon on 145.980 MHz, a data communications transceiver on 437.525 MHz using AX.25 packet radio and carries a 44 watt LED optical beacon to flash Morse code messages to observers on Earth.
When deployed the OSSI-1 145.980 MHz Morse Code beacon will send “OS0 DE OSSI1 ANYOUNG”.
Open Source Satellite Initiative blog http://opensat.cc/blog/launch/ossi-1-satellite-launch/
The OSSI telemetry data format spreadsheet can be seen at https://docs.google.com/spreadsheet/ccc?key=0AjtQ6cJ4QOqJdGpHNnRtUWZJV0w4TTFKRU9WYTZqc3c#gid=5
CubeSat deployment pods on top of the Bion-M1 spacecraft
The development of the OSSI satellite has been documented on the Open Source Satellite Initiative Blog http://opensat.cc/blog/ and the Wiki http://opensat.cc/wiki/
The Korean national amateur radio society KARL described the OSSI-1 CubeSat in their report to the International Amateur Radio Union Region 3 Triennial conference which was held in Viet Nam in 2012. Read the report at http://www.iaru-r3.org/15r3c/docs/019.doc
In this 20 minute video Korean artist Hojun Song DS1SBO and Donghee Park describe the Open Source Satellite Initiative amateur radio CubeSat OSSI-1.
Watch How OSSI-1 Satellite Works: General Overview
Additional OSSI-1 information at https://amsat-uk.org/satellites/ossi-1/
Watch the BBC TV report: Korean artist has high hopes for his homemade satellite
Hojun Song DS1SBO and the NovaNano FlyMate™ deployer
Satellite Downlink Mode
———- ————— ——————
Russian Student Satellite AIST-2 on BION-M1
OSSI-1 145.980/437.525 CW and 1200bps FSK AX.25
SOMP 437.485 1200, 9600bps BPSK
BEESAT-2 435.950 4800bps GMSK Mobitex
BEESAT-3 435.950 4800bps GMSK Mobitex
Bion-M1 Biological research satellite
AIST Russian student microsatellite that aims to measure the Earth’s geomagnetic field
(435 MHz downlink, 145 MHz command uplink)
Dove-2 Commercial technology demonstration mission (450 MHz band downlink)
Predicted Keps / TLE’s:
1 39130U 00000 13108.66833333 .05491454 00000-0 10000-3 0 00014
2 39130 064.8675 103.2000 0241259 064.9287 214.9800 15.56817350000015
1 99999U 13110.41666667 -.00000032 00000-0 -27259-5 0 00006
2 99999 064.9888 015.3126 0011850 230.4664 032.8952 14.97640844000015
Bion-M1 is carrying live mice, geckos and gerbils, see the BBC story at http://www.bbc.co.uk/newsround/22218589
Space News Feed http://www.spacenewsfeed.co.uk/index.php/launches/14433-bion-m-1-aist-2-beesat-2-beesat-3-dove-2-ossi-1-somp

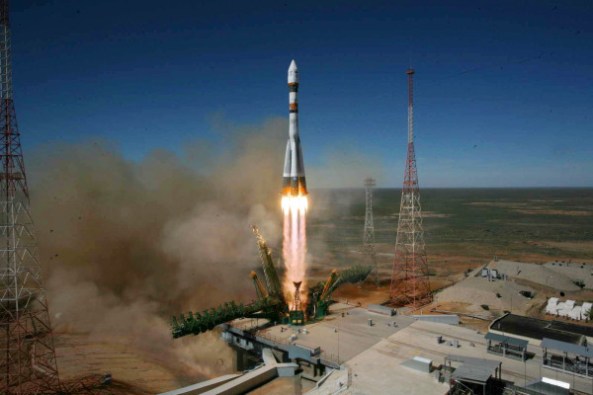

Soyuz-2-1a Bion-M1 Launch – Image credit SpaceShuttleAlmanac
