Australian ham radio pico balloons

PS-31 and PS-32 balloon track as of January 26, 2015

PS-31 and PS-32 balloon track as of January 26, 2015

Different paths are being taken by the two solar-powered Australian pico balloons, PS-31 and PS-32, carrying Amateur Radio payloads, each sending 25 mW WSPR and JT9 transmissions alternately in the 10 MHz and 14 MHz bands. Their current position is here.

They are each standard 90 cm foil party balloons with a  payload that comprises a GPS receiver, two HF transmitters, battery and solar panel weighing a total of just 15 grams.

The transmitters for both balloons can be received on standard WSPR dial frequencies of 10.138700 MHz and 14.095600 MHz. For PS-31 these will put WSPR at 1400 Hz-1600 Hz, and JT9 at 1000 Hz, allowing decoding of both WSPR and JT9 without changing frequency on each band. PS-32 has a 1200 Hz JT9 offset so that it can coexisting with the PS-31 transmissions at 1000Hz offset.

Jim Linton VK3PC writes:

Launched from Melbourne on Saturday, January 24, the balloon PS-31 has now crossed the International Dateline for a second time, at the 23rd parallel in the South Pacific.

It formed the letter ‘S’ on its journey that took it to the sub-antarctic in the south, then turned back reaching the north-east coast of New Zealand, and turning again on a more easterly track. It is a third of the way between Australia and South America.

Meantime PS-32, launched from Woori Yallock 56 km east of Melbourne three days later, continues to track south-east to by-pass New Zealand on a polar route across the dateline in the Southern Ocean, before traveling around Cape Horn in South America.

They are fitted with QRP transmissions give their location, altitude, speed and other data, with PS-31 using the callsign VK3YT while PS-32 is signing VK3ANH.

Both are following their predicted trajectory paths in a Jetstream forecast by the National Oceanic and Atmospheric Administration (NOAA).

Andy Nguyen VK3YT who launched them, and an international tracking effort, have their fingers crossed that both will at least reach South America.

Waiting and listening are radio amateurs using open-source software tools eager to report progress of the southern hemisphere flights.

Earlier, PS-30 was launched from Melbourne on December 27. It crossed the African continent entering through Namibia. There it was tracked to near Madagascar before poor weather and lost after 20 days.

Combined tracking map http://spacenear.us/tracker/fullscreen.php?filter=PS-31;PS-32

More info at Andy VK3YT’s web site http://picospace.net/

Download free WSJT and WSPR software to decode the transmissions from
http://physics.princeton.edu/pulsar/k1jt/

Pico balloons PS-31 and PS-32 on Jan 28, 2015

Pico balloons PS-31 and PS-32 on Jan 28, 2015

Update January 28, 2015

The small solar-powered pico balloon from Australia went down north-east of New Zealand, probably being hit by rain and ice in the area.

Andy Nguyen VK3YT reports that PS-31 gave out its final JT9 packet message and was lost.

The balloon, launched from Melbourne Australia on Saturday January 24, maneuvered forming an s-shape but was lost after as dark fell and it was across the International Dateline in the South Pacific.

Andy VK3YT who launched both the PS-31 and PS-32 balloons says “Thanks everyone for tracking, and hope PS-32 (the other balloon) will keep going for much longer.”

PS-32 with the VK3ANH callsign continues to be tracked. It put up from Woori Yallock 56kms east of Melbourne on January 26, Australia Day, and is currently in the South Pacific.

Like all recent balloons in the series launched by Andy VK3YT for the Southern Hemisphere, it is fitted with QRP transmission of both WSPR and JT9 giving trackers the location, speed and altitude along with other data.

PS-32 continues being tracked at last report was doing well. An International team of radio amateurs are following its path.

Jim Linton VK3PC

PS-32 tracking map http://spacenear.us/tracker/fullscreen.php?filter=PS-32

434 MHz balloon goes around the world

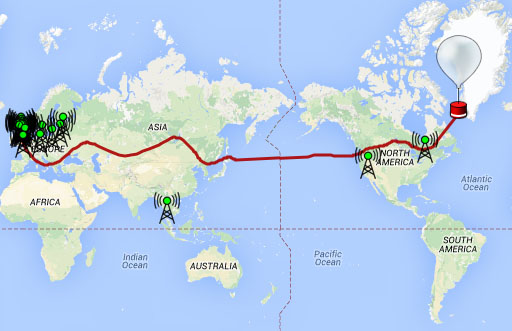

Flight path of the B-64 balloon launched by Leo Bodnar M0XER

Flight path of the B-64 balloon launched by Leo Bodnar M0XER

The 434 MHz solar powered balloon B-64, launched by radio amateur Leo Bodnar M0XER, is approaching the UK at the end of a record breaking journey around the world.

Party balloon with tiny solar powered 434 MHz transmitter - Image credit Leo Bodnar M0XER

Party balloon with tiny solar powered 434 MHz transmitter – Image credit Leo Bodnar M0XER

Leo launched his balloon from Silverstone in the UK on July 12, 2014. It traveled east across Asia, the Pacific and the Americas and is expected to complete the final transatlantic crossing arriving over Cornwall on July 31 or August 1. It is then likely to continue eastwards into Europe.

Radio amateurs and listeners should be able to receive B-64’s Contestia 64/1000 signal on 434.500 MHz USB with the usual pips. When it is over the UK it will alternate the Contestia tranmission with APRS also on 434.500 MHz running 10 mW output.

During the circumnavigation of the northern hemisphere B-64 has traveled over 25,000 km across some of the most remote terrain in the planet.

See the track of B-64 at http://spacenear.us/tracker/?filter=B-64

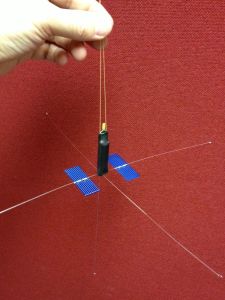

Typical 434 MHz solar powered payload - Image credit Leo Bodnar M0XER

Typical 434 MHz solar powered payload – Image credit Leo Bodnar M0XER

Leo Bodnar M0XER balloons http://www.leobodnar.com/balloons/

Download the dl-fldigi software from http://ukhas.org.uk/projects:dl-fldigi

Beginners Guide to Tracking using dl-fldigi http://ukhas.org.uk/guides:tracking_guide

Listen to balloons online (when in range of south-east UK) from anywhere in the world with the SUWS 434 MHz WebSDR (select USB)
https://amsat-uk.org/2013/12/28/websdr-for-434-and-1296-mhz/

For High Altitude Balloon chat check the #highaltitude IRC channel. A web client is available at
http://webchat.freenode.net/?channels=highaltitude

To get up-to-date information on balloon flights subscribe to the UKHAS Mailing List by sending a blank email to this address: ukhas+subscribe@googlegroups.com
